Vortex COB
Ready for delivery in 4–5 weeks

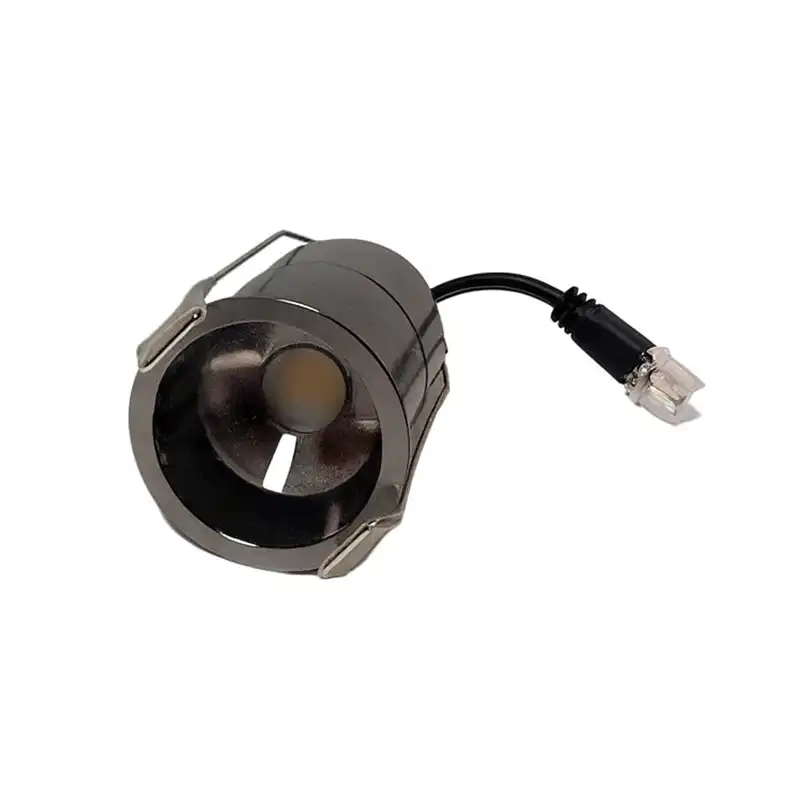

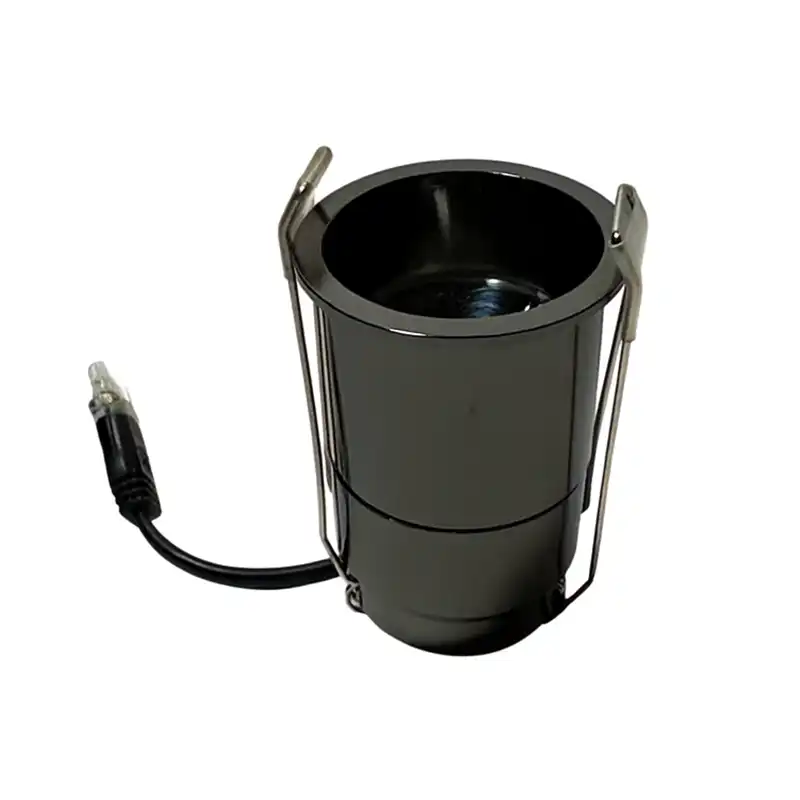

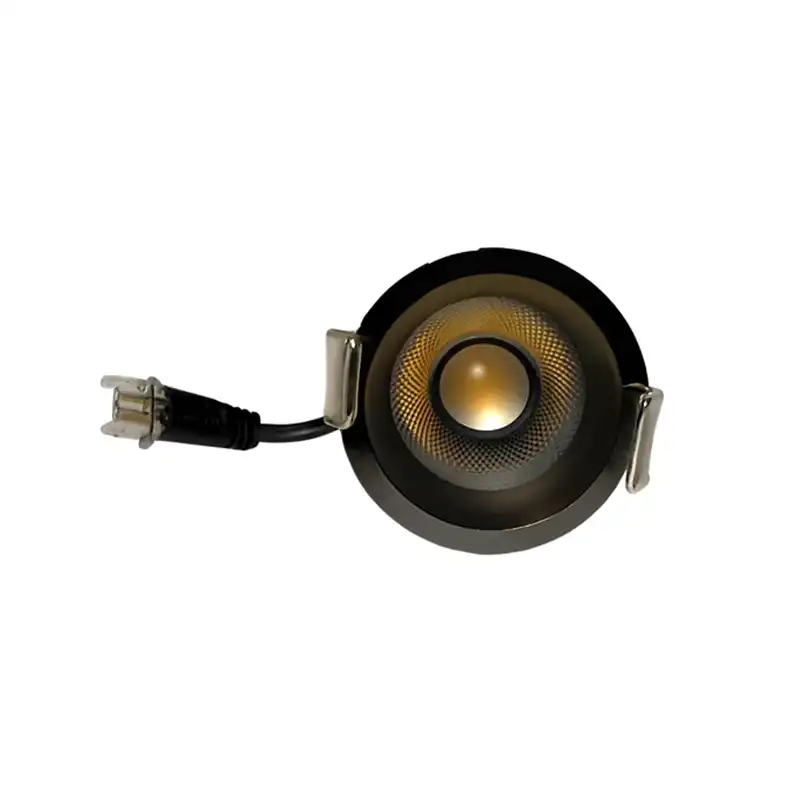

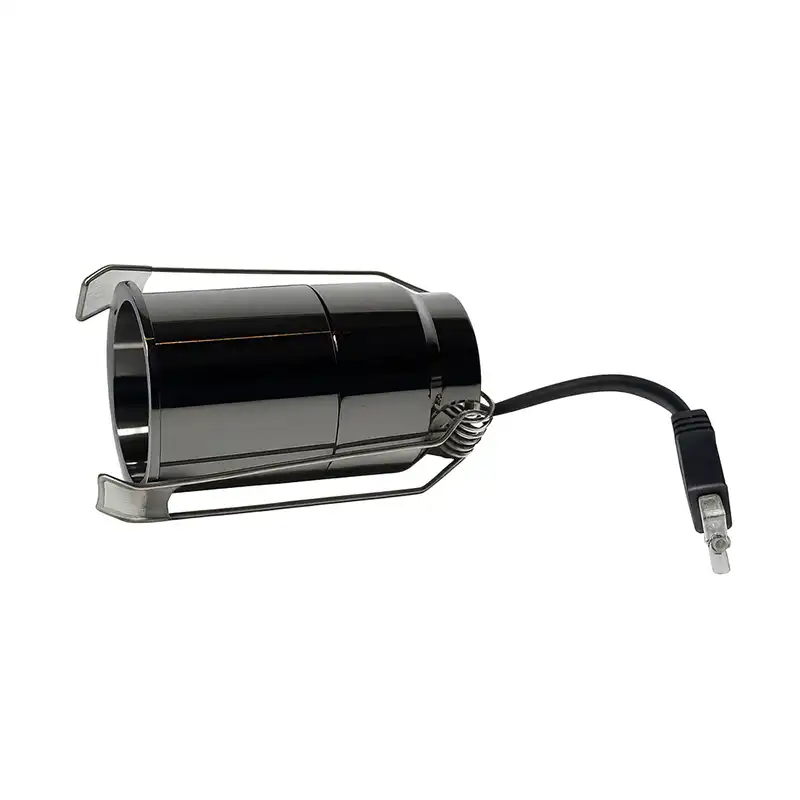

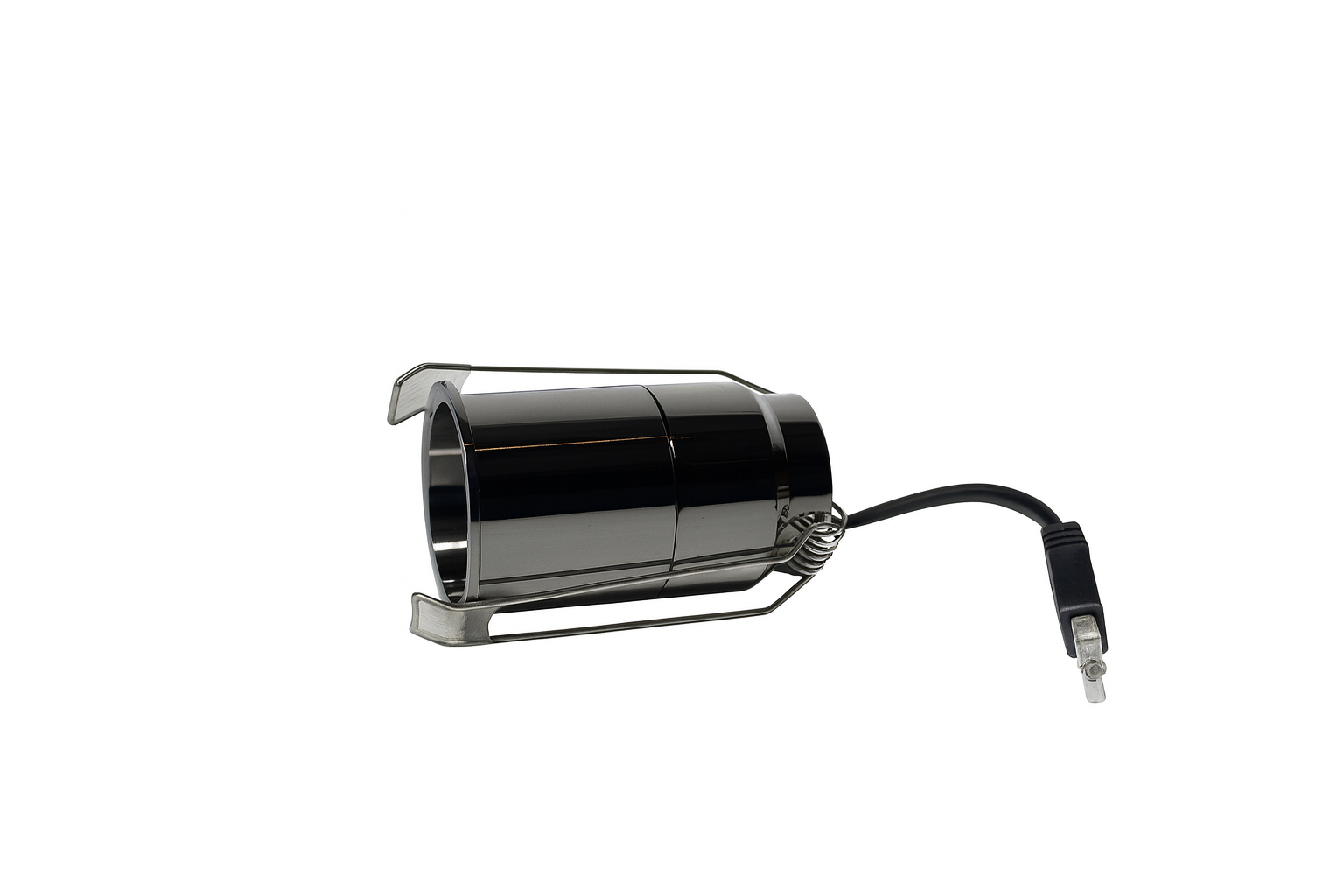

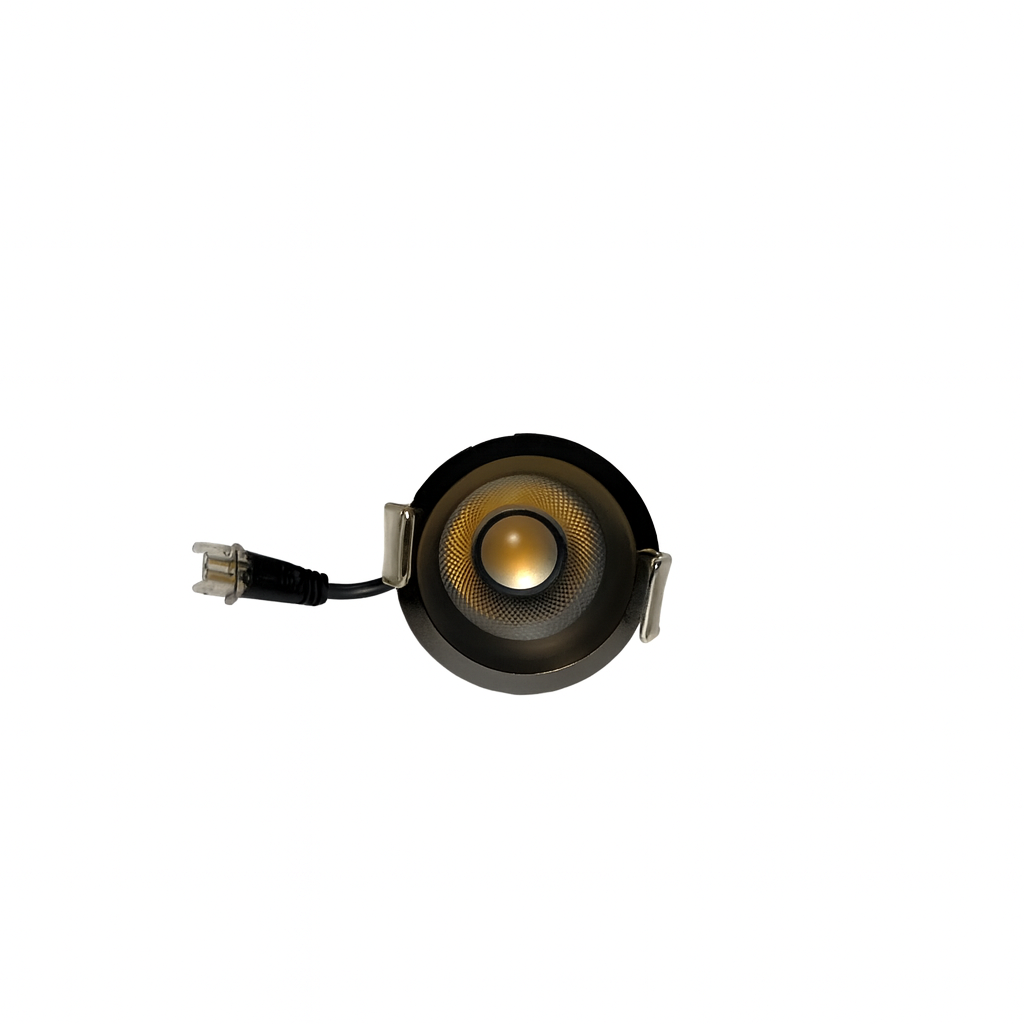

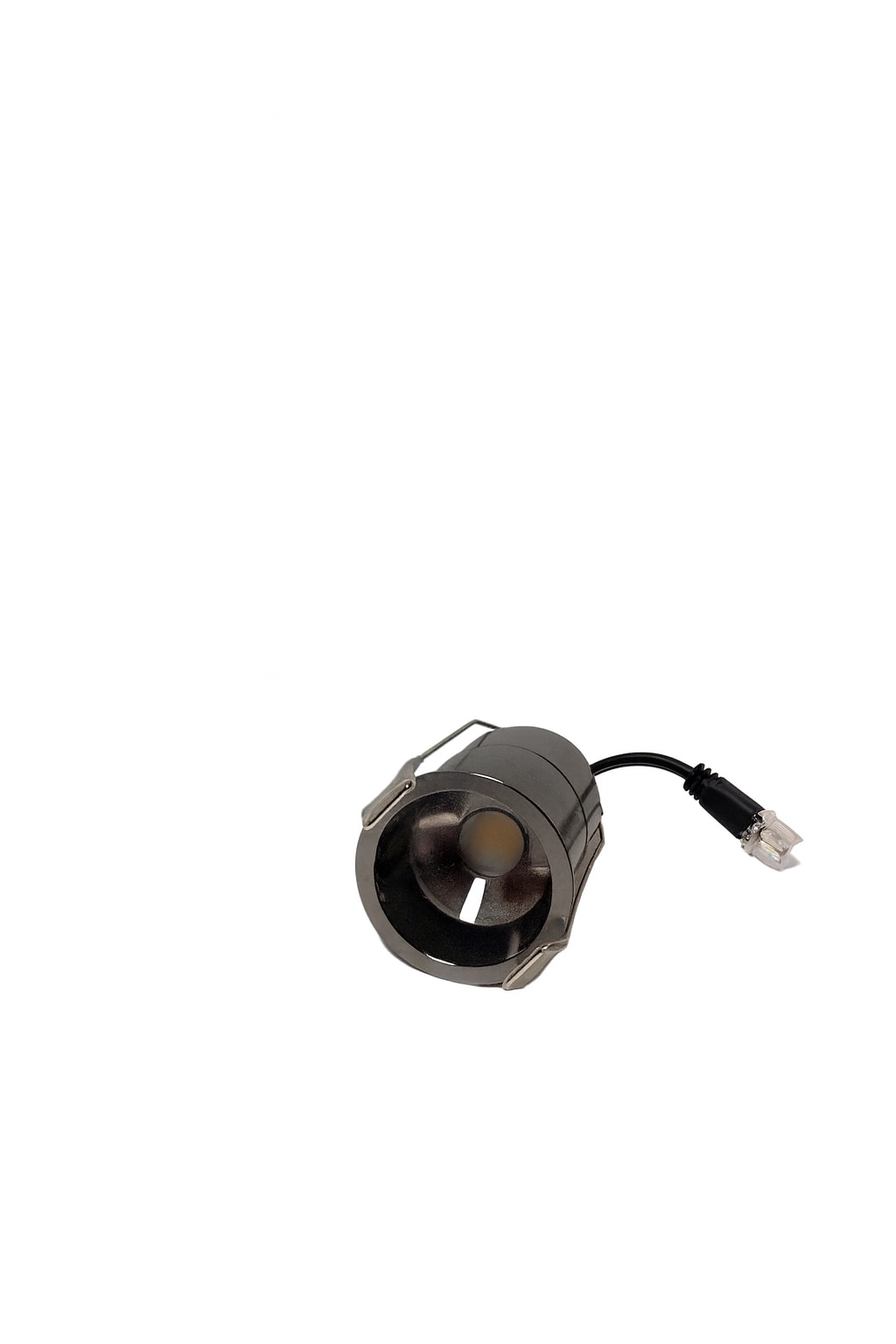

The Vortex is a sleek and versatile COB (Chip on Board) LED fixture designed to deliver powerful illumination with a refined aesthetic. Built with premium materials and precision engineering, it offers a perfect balance of performance and style for modern interiors. Available in two sophisticated body colours, White and Gun Metal, the Vortex blends seamlessly into any design theme. It comes with a high-quality lens that ensures enhanced light distribution and clarity, while its compact cylindrical body and durable finish make it both functional and visually striking. With easy plug-and-play connectivity and secure mounting, the Vortex is an ideal choice for general illumination in both residential and commercial spaces.
TECHNICAL PARAMETERS
Vortex COB
| Model | Vortex COB |
| Power Wattage | 7W | 12W |
| Cutout (mm) | Ø40 | Ø50 |
| Outer (mm) | Ø45 | Ø55 |
| Height (mm) | 65 | 70 |
| LED Color Temperature | 3000K 4000K 5000K 6000K |
| Beam Angle | 36° |
| Optical Cover | Optical Lens |
| Light Source | CREE |
| Housing Material | Aluminum Pressure Die-Cast |
| Body Finishing | White | Gun Black |
| Reflector Finishing | NA |
| Power Requirement | 150–240 Vac 50 Hz |
| Protection Rating | IP 65 |
| Lumen/W | 130–140 lm/W |
| CRI | ≥ 80Ra | ≥ 90Ra |
| Operating Temperature | 10°c ~ +50°c |
| Driver | External Driver |
| Power Factor | >0.90 |
36°
130–140 lm/W
IP65
