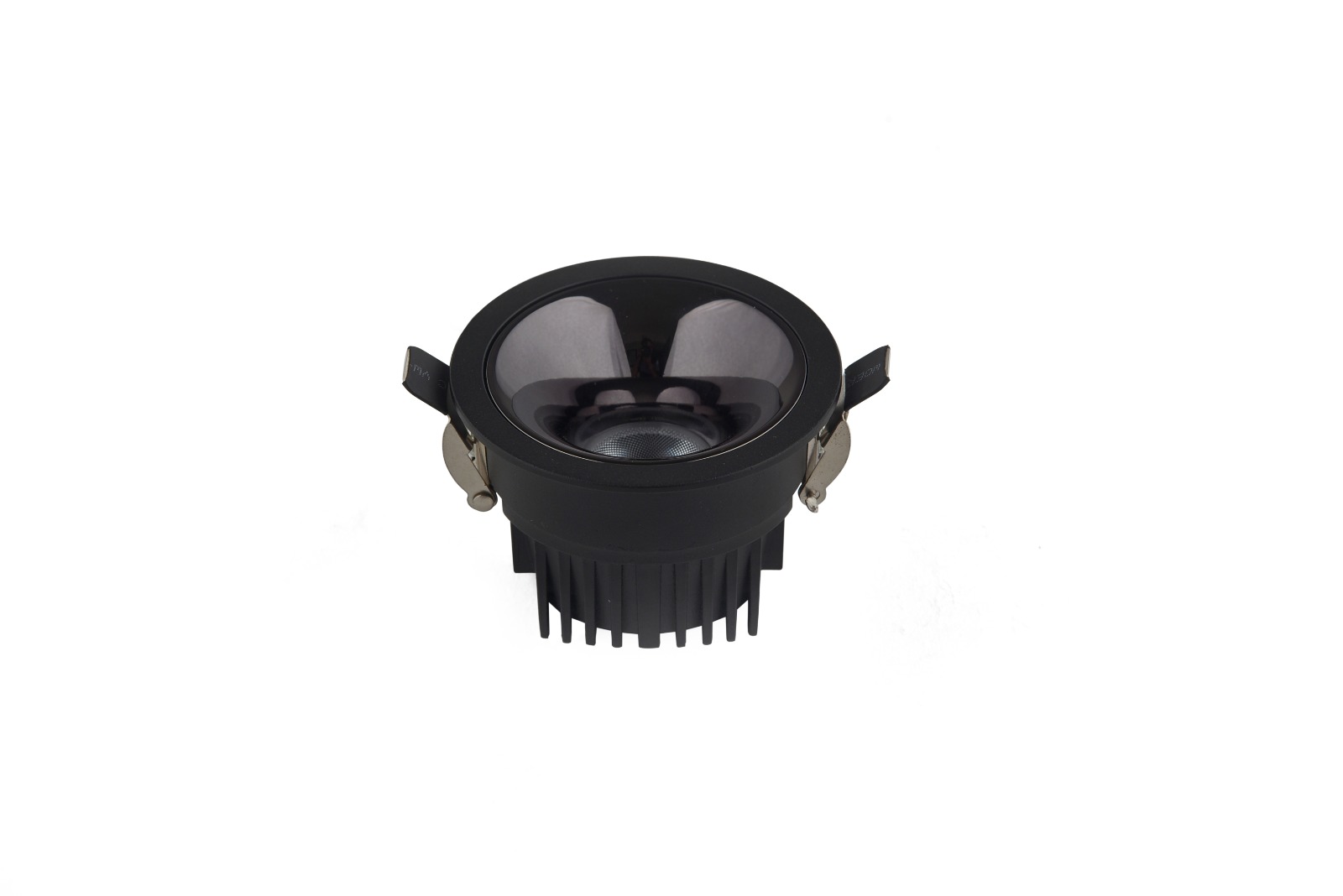

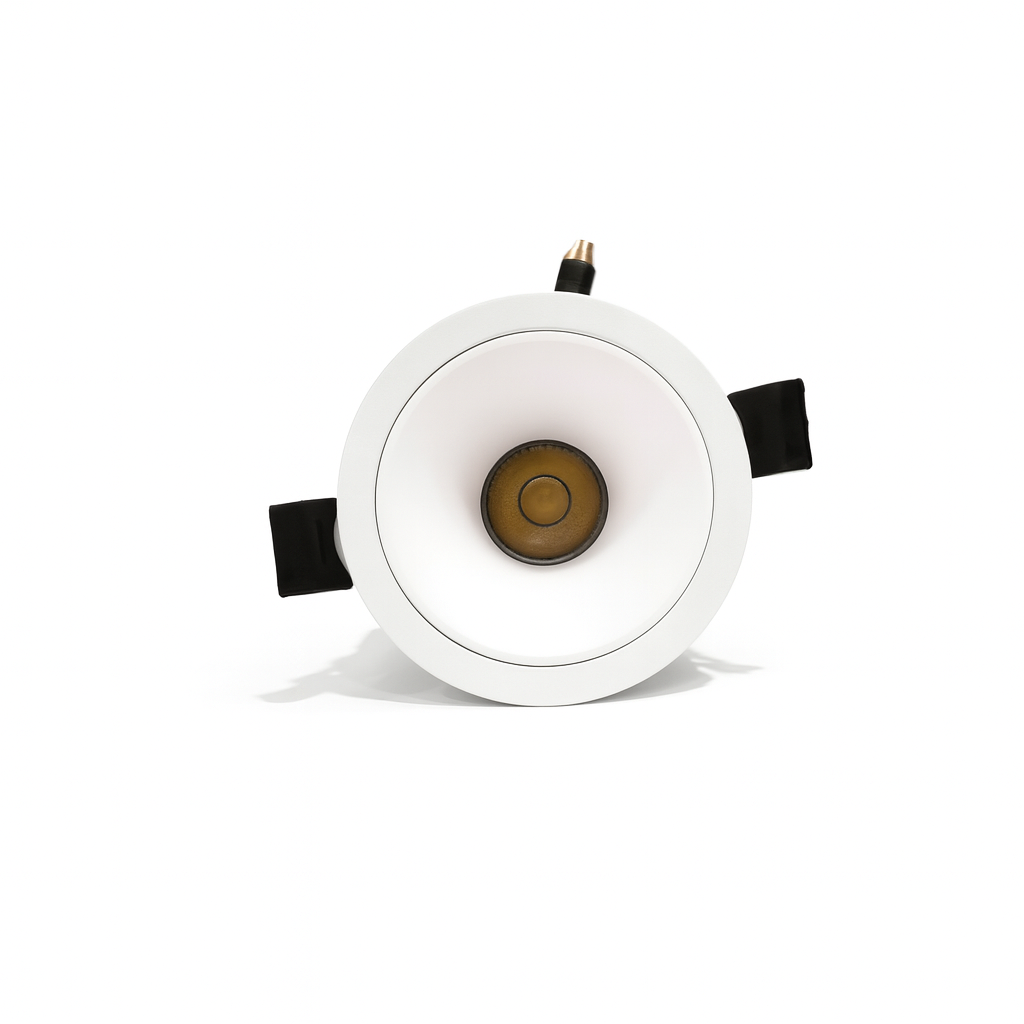

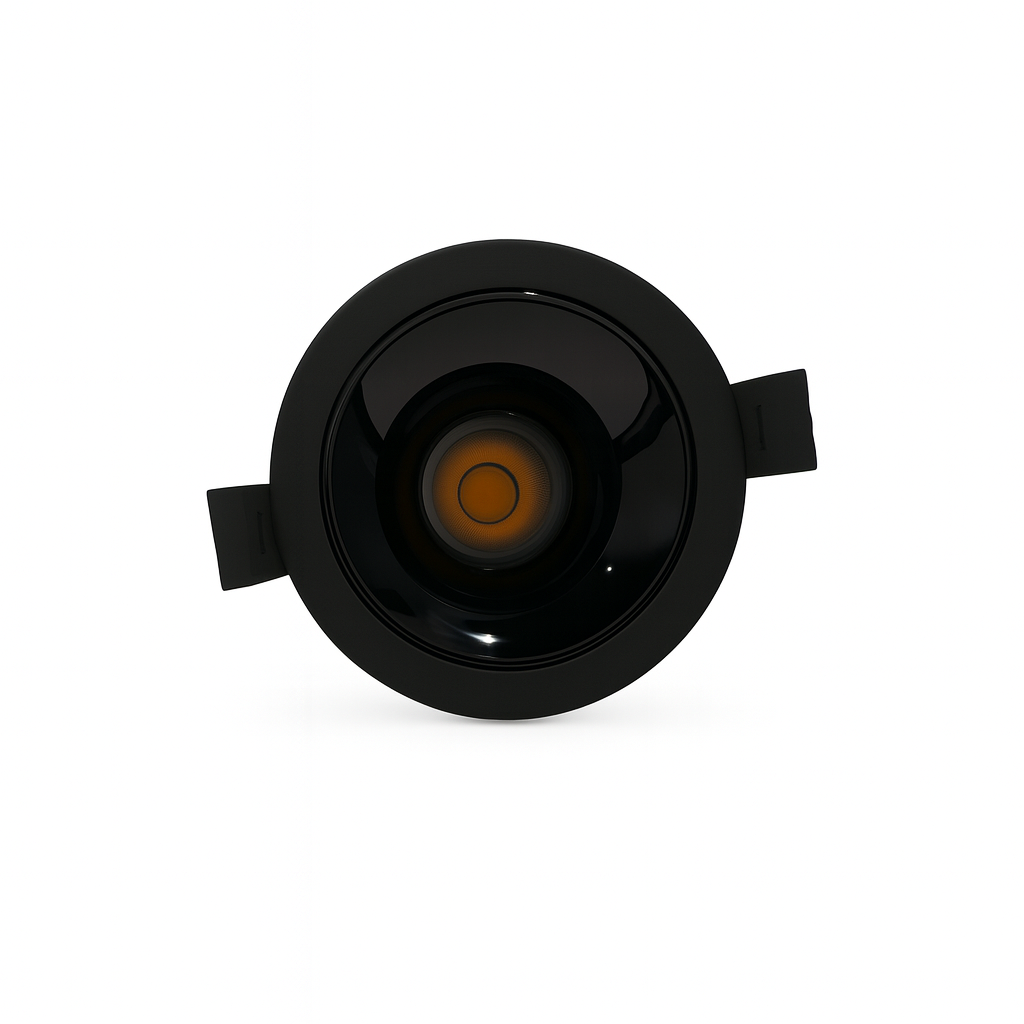

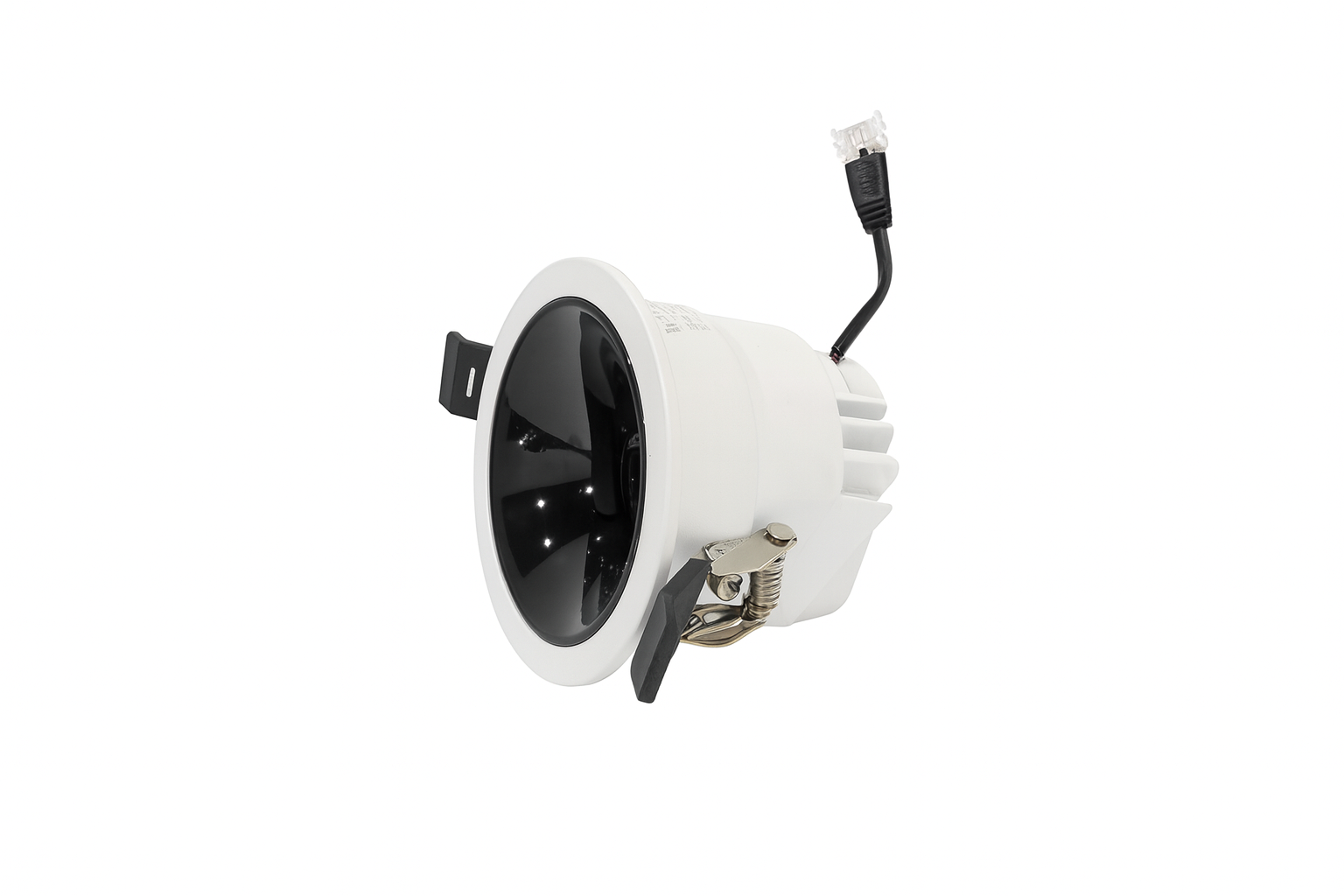

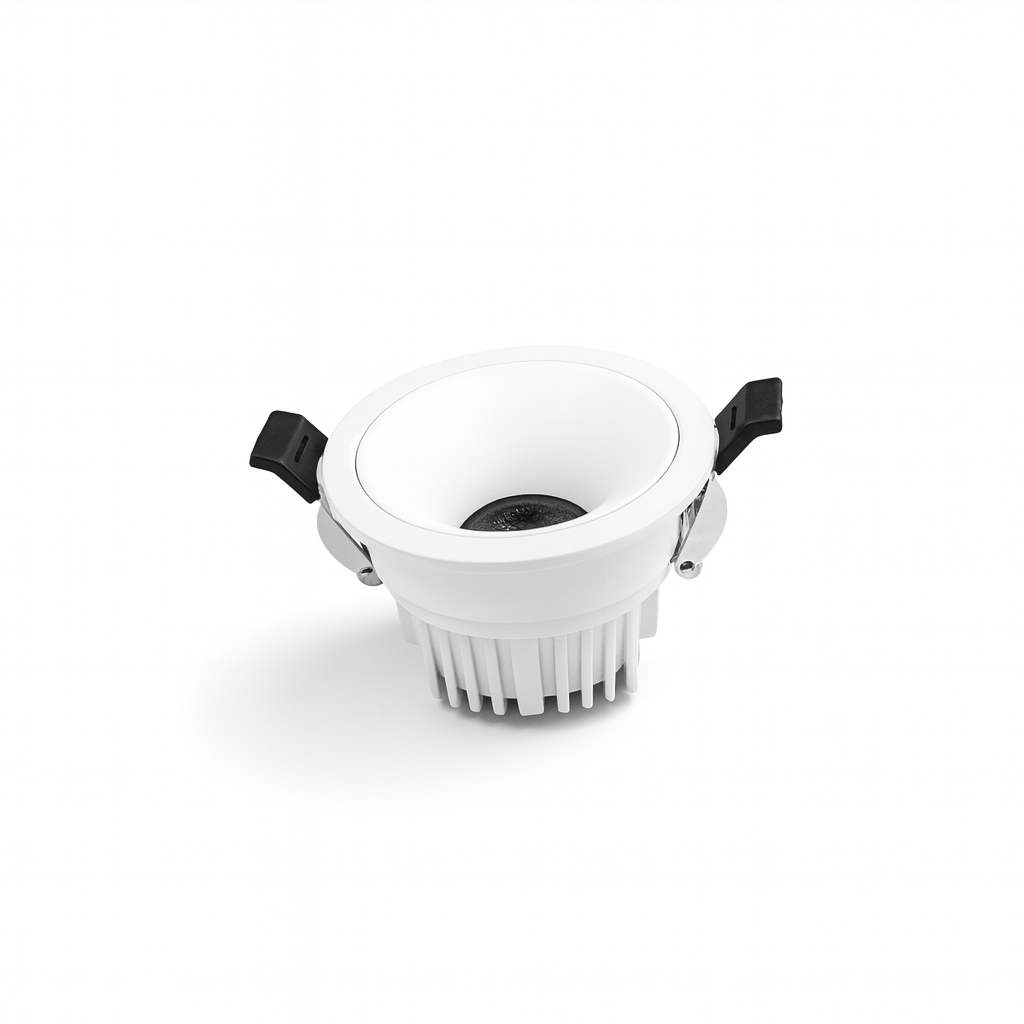

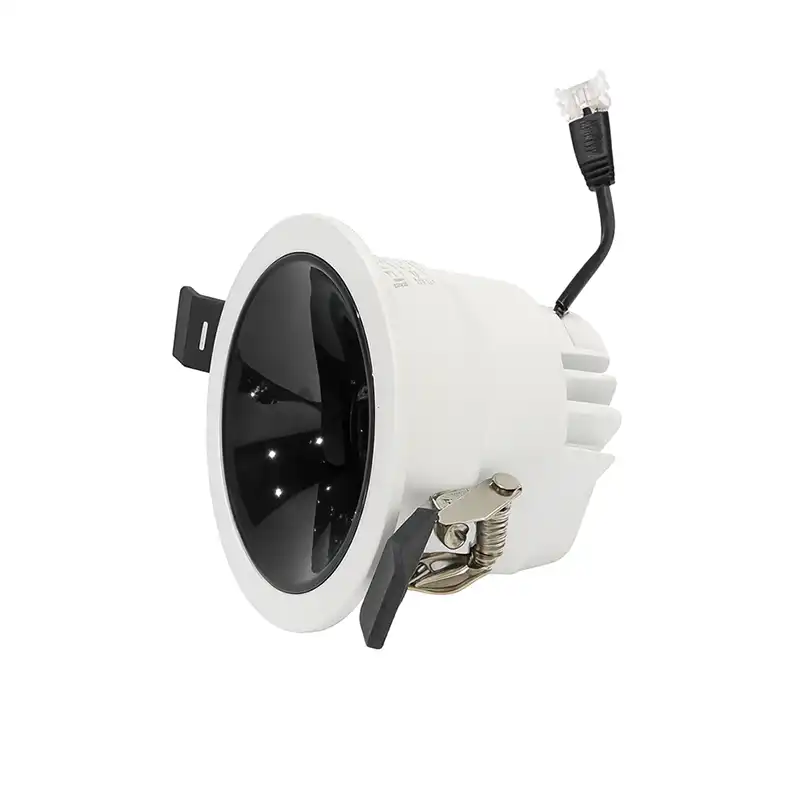

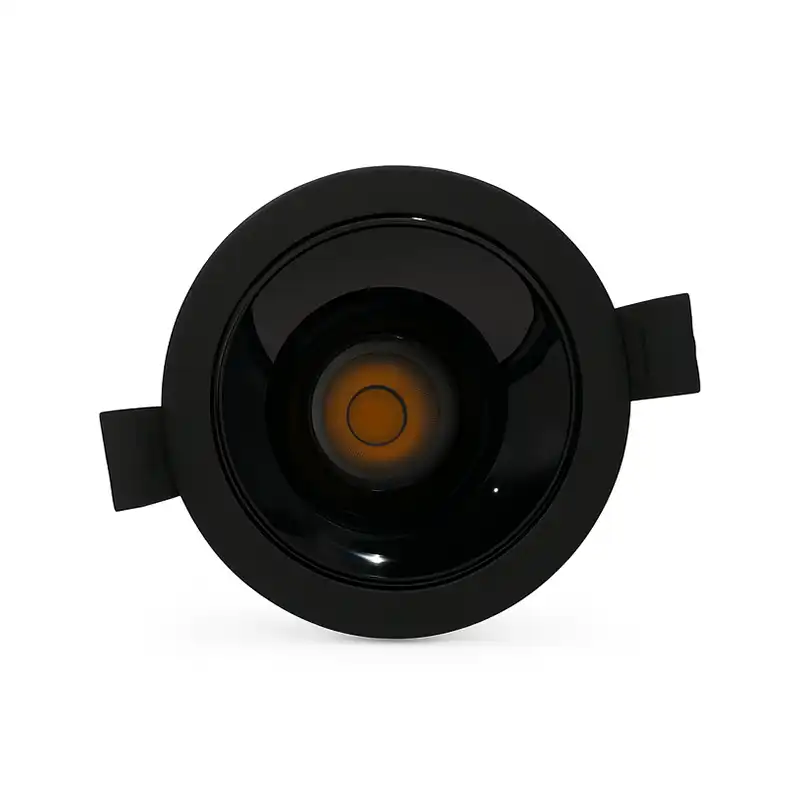

Vexa COB
Ready for delivery in 4–5 weeks

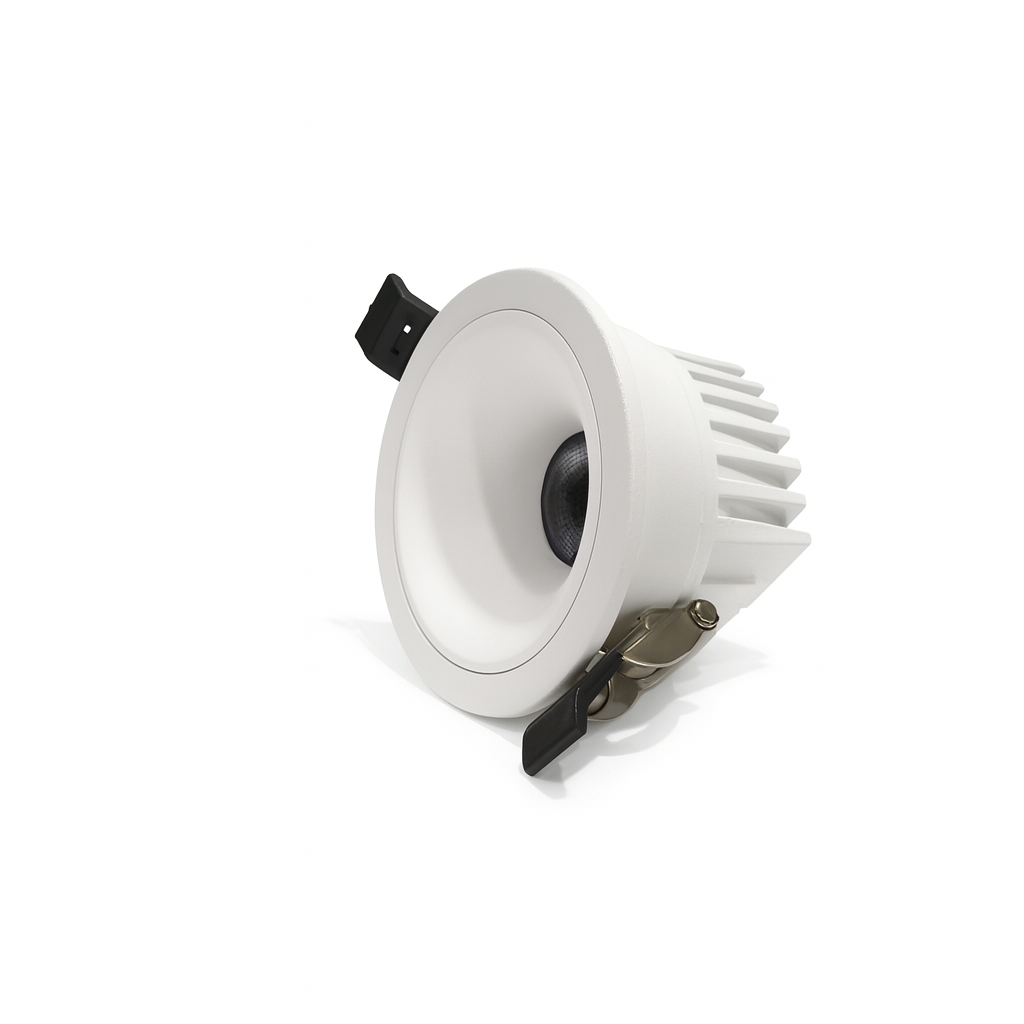

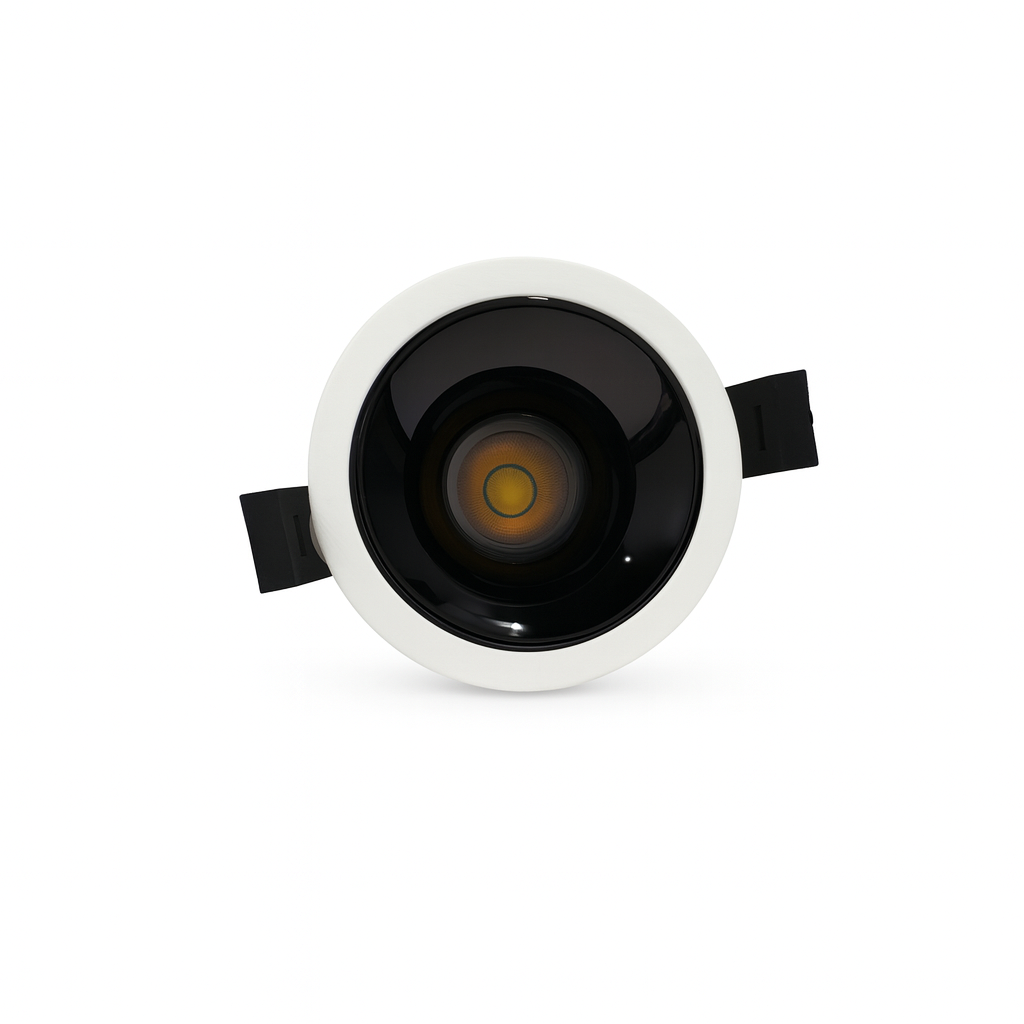

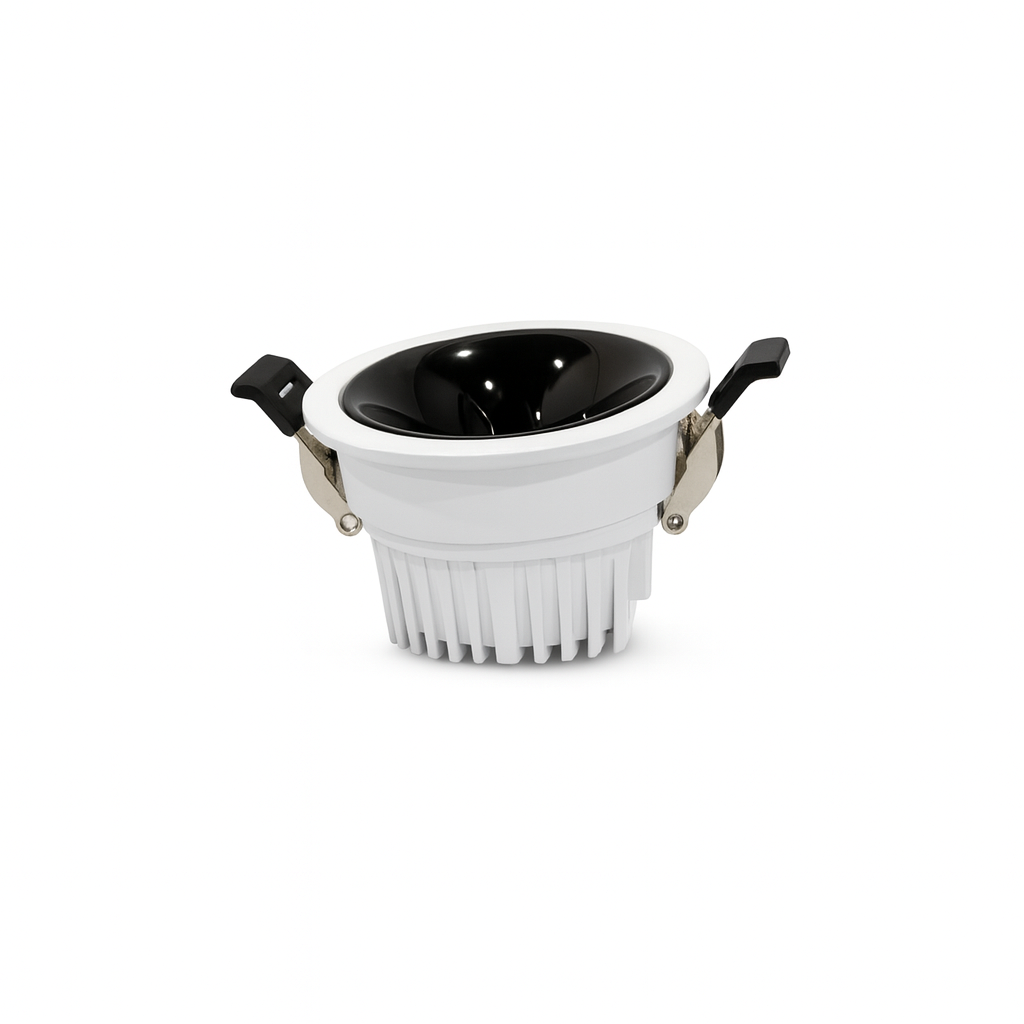

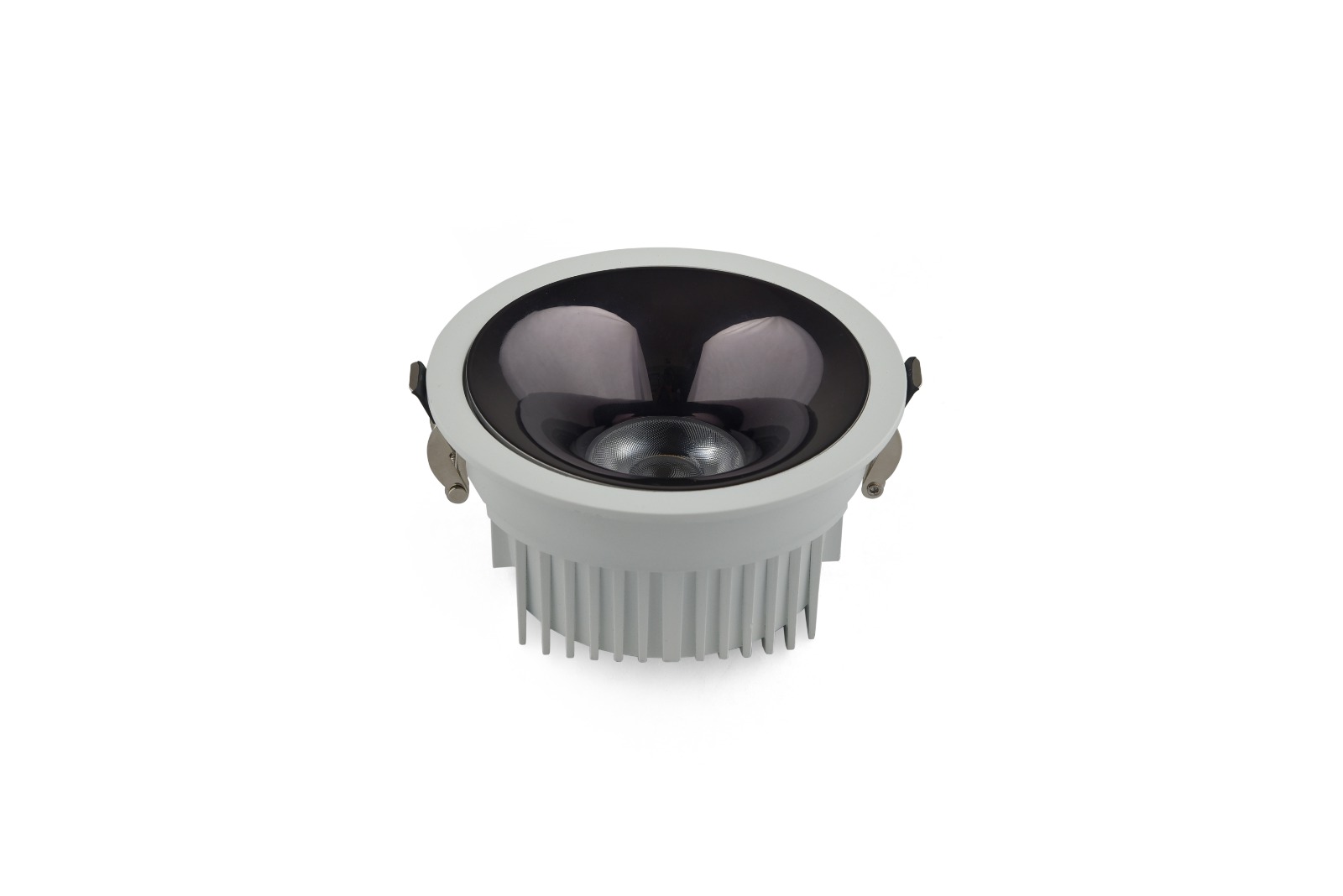

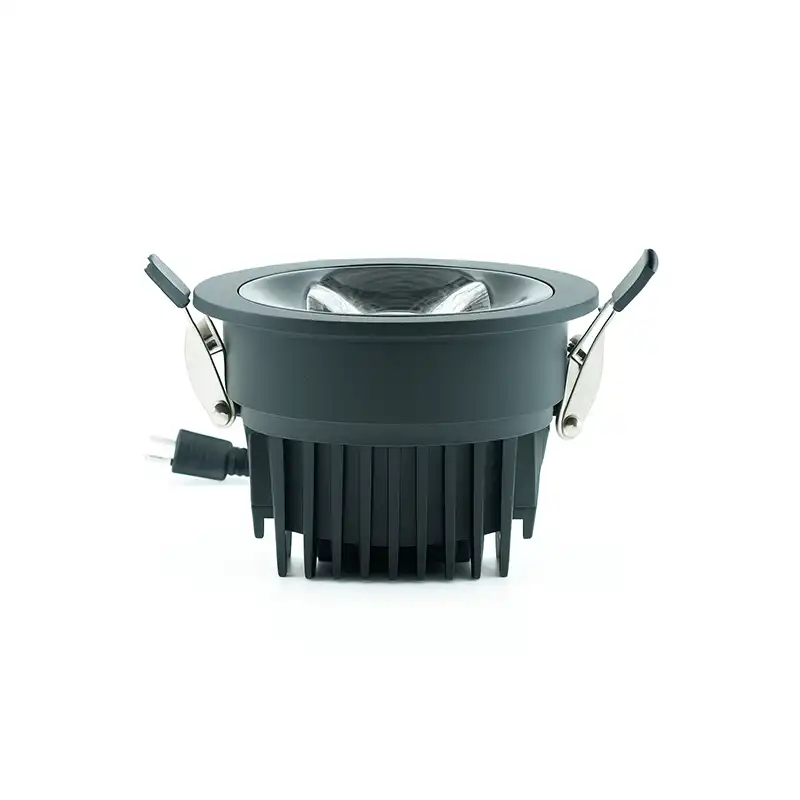

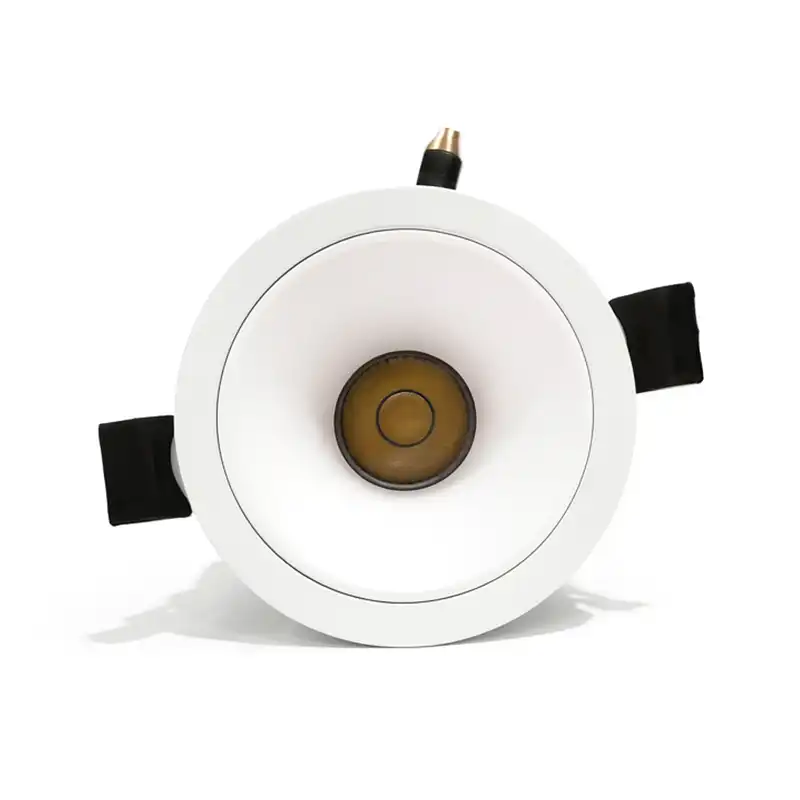

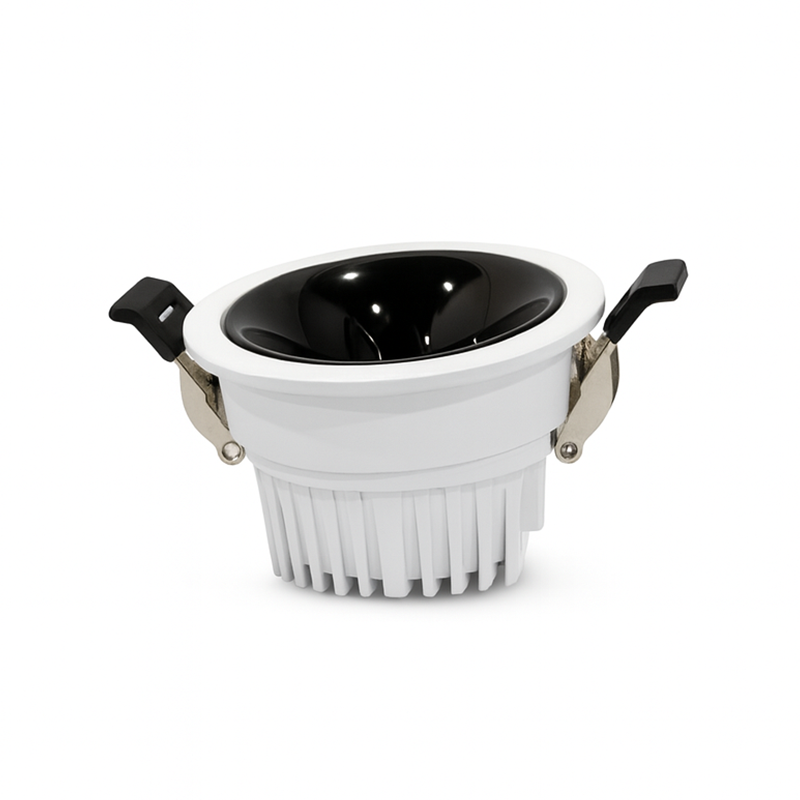

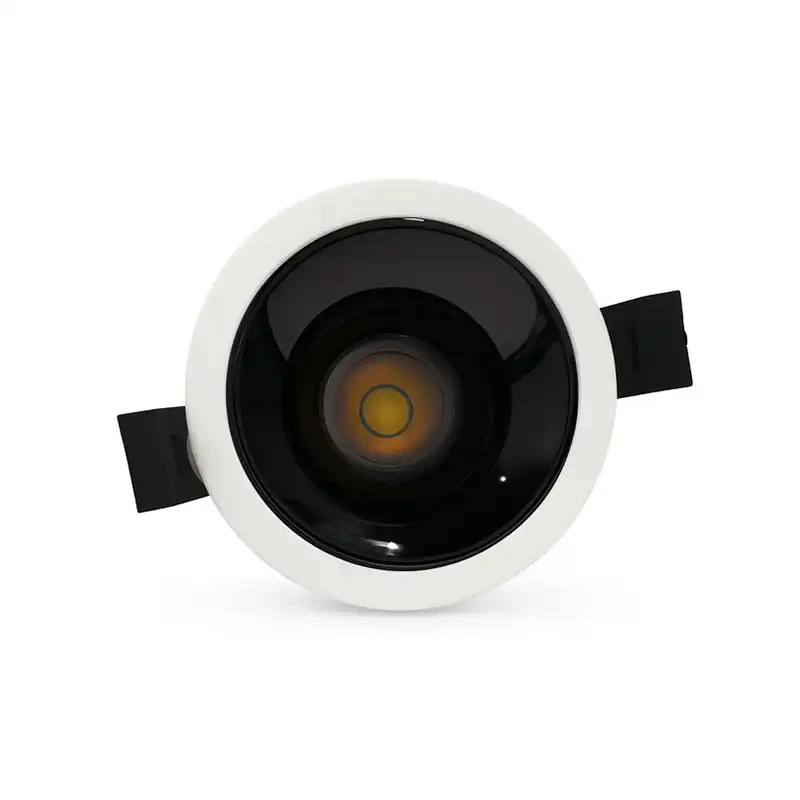

The Vexa COB Fixture is one of our fast-moving SKUs, designed to deliver both style and performance. With its modern design and reliable COB technology, it provides powerful illumination while enhancing the aesthetic of any space. Vexa is available in two body colours, White and Black, giving you the flexibility to match your interior design. To complement this, it also offers a range of reflector colour options including White, Smokey Grey, Chrome and Rose Gold, allowing you to achieve the perfect balance of light and style.
Ideal for residential, retail, or commercial applications, Vexa combines elegance, versatility and functionality, making it a top choice among architects, designers and homeowners who value both quality and design.
TECHNICAL PARAMETERS
VEXA COB
| Model | VEXA COB |
| Power Wattage | 12W | 15W | 20W | 30W |
| Cutout (mm) | Ø54 | Ø75 | Ø95 | Ø115 |
| Outer (mm) | Ø60 | Ø85 | Ø105 | Ø130 |
| Height (mm) | 60 | 70 | 75 | 75 |
| LED Color Temperature | 3000K 4000K 5000K 6000K |
| Beam Angle | 24° | 36° |
| Optical Cover | Optical Lens |
| Light Source | CREE |
| Housing Material | Aluminum Pressure Die-Cast |

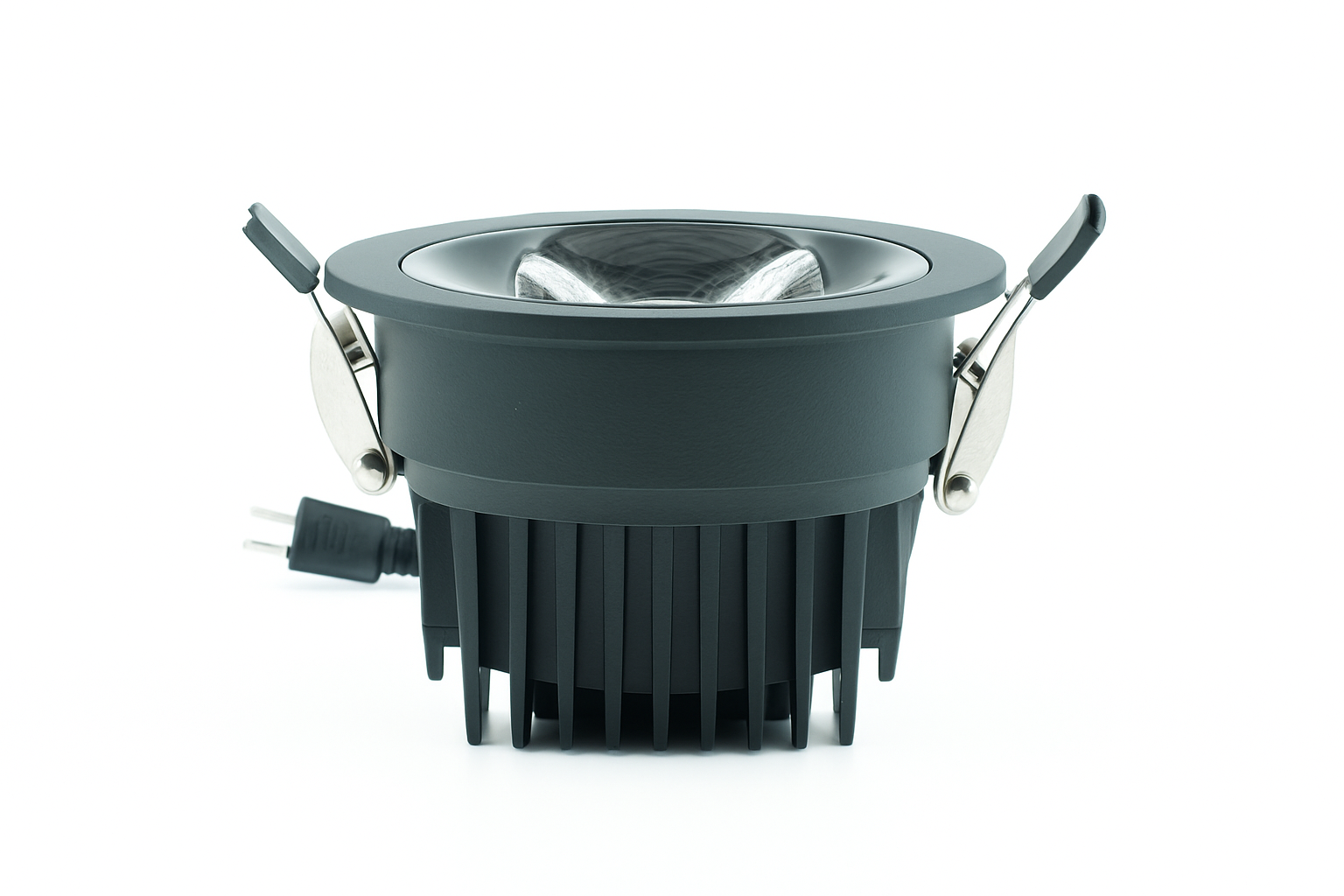

| Body Finishing | White | Black |
| Reflector Finishing | Rose Gold | Shiny Black |
| Power Requirement | 150–240 Vac, 50 Hz |
| Protection Rating | IP 20 |
| Lumen/W | 130–140 lm/W |
| CRI | ≥ 80Ra | ≥ 90Ra |
| Operating Temperature | 0°c ~ +50°c |
| Driver | External Driver |
| Power Factor & THD | > 0.9 | < 20% |
24° / 36°
130–140 lm/W
IP20
Number of packages:1
Package dimensions: Height: 79,00, Width: 79,00, Length: 86,00, Weight: 23,00
Package dimensions: Height: 79,00, Width: 79,00, Length: 86,00, Weight: 23,00
SKU: CC5228KY01-1-1-1-1-1-1-1-1-1-1
