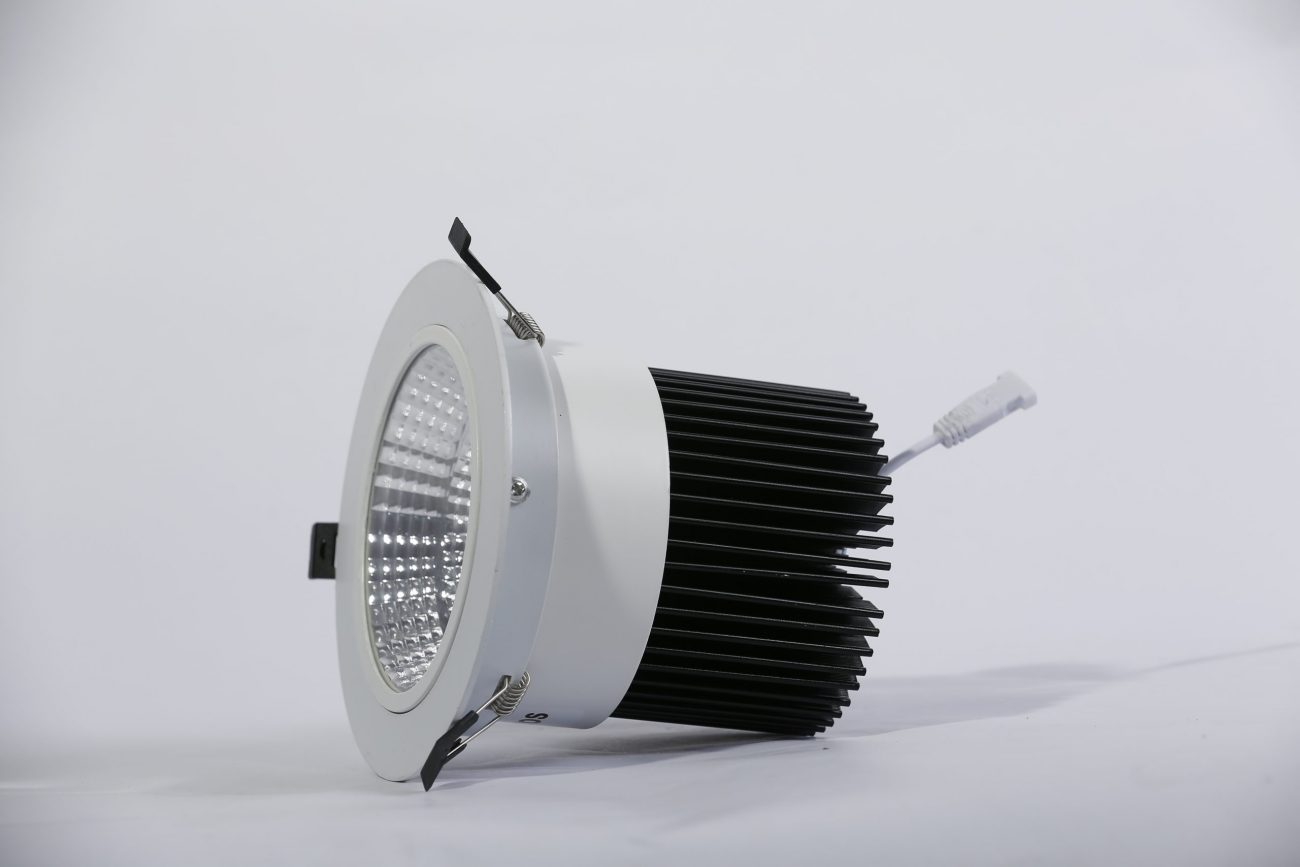

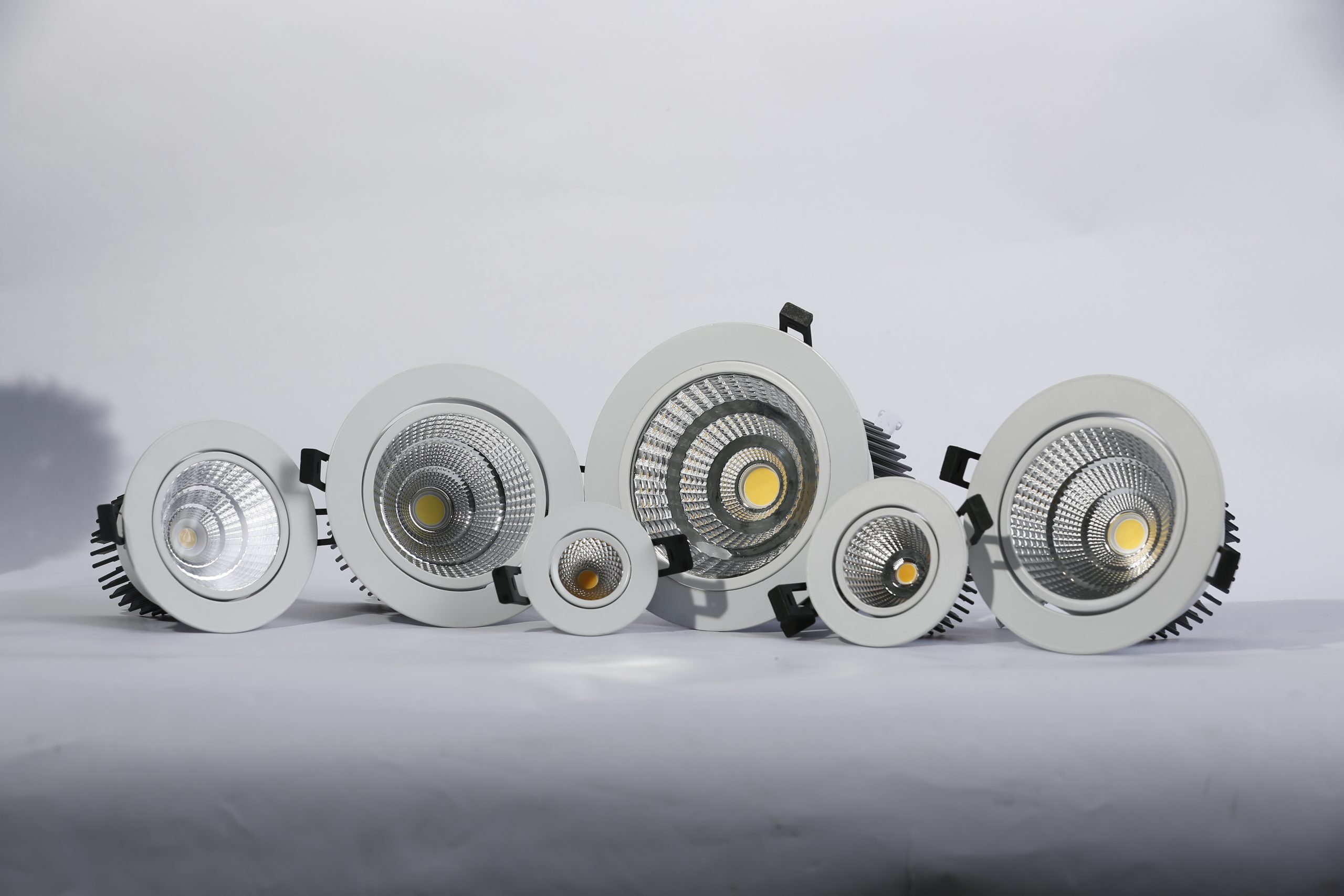

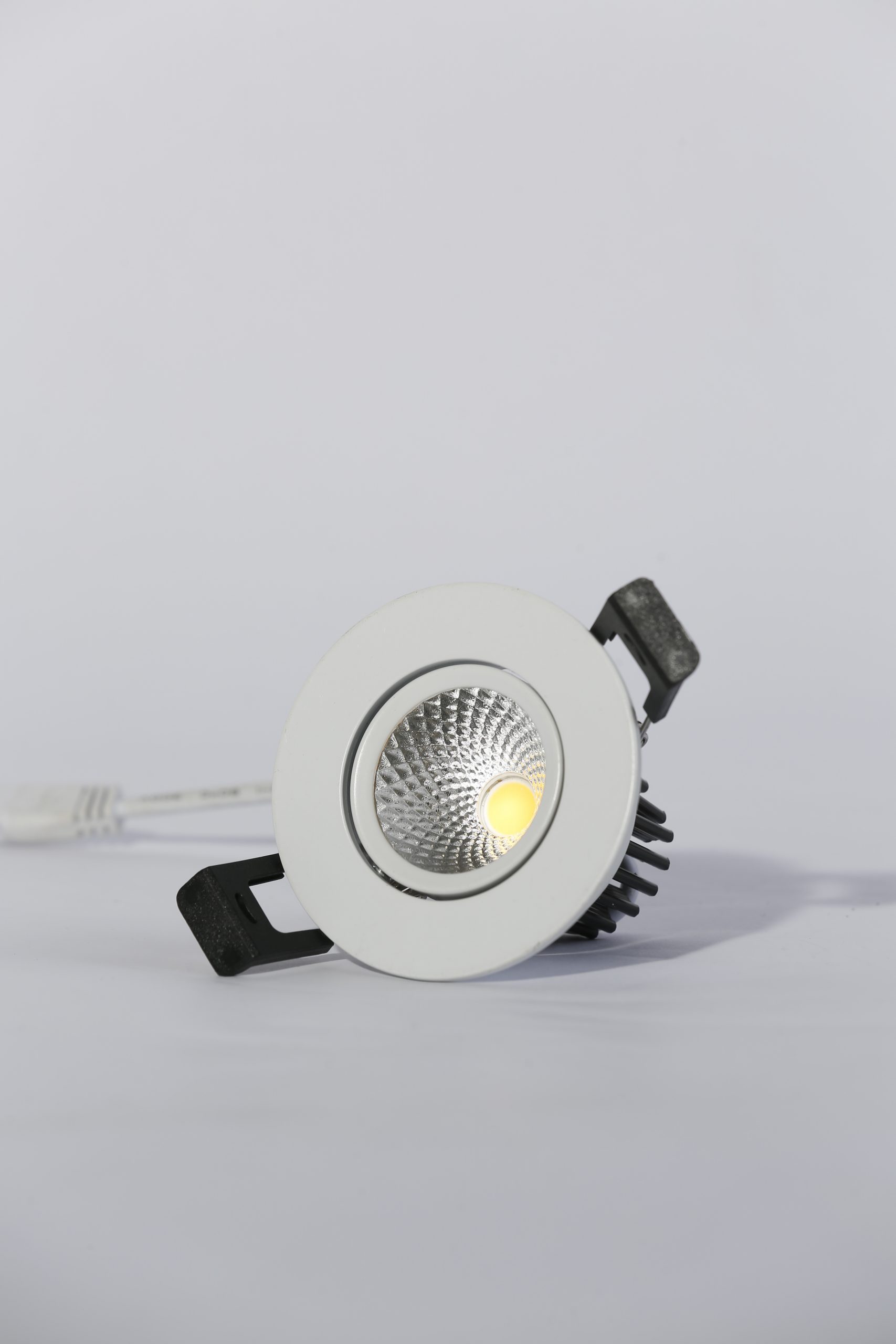

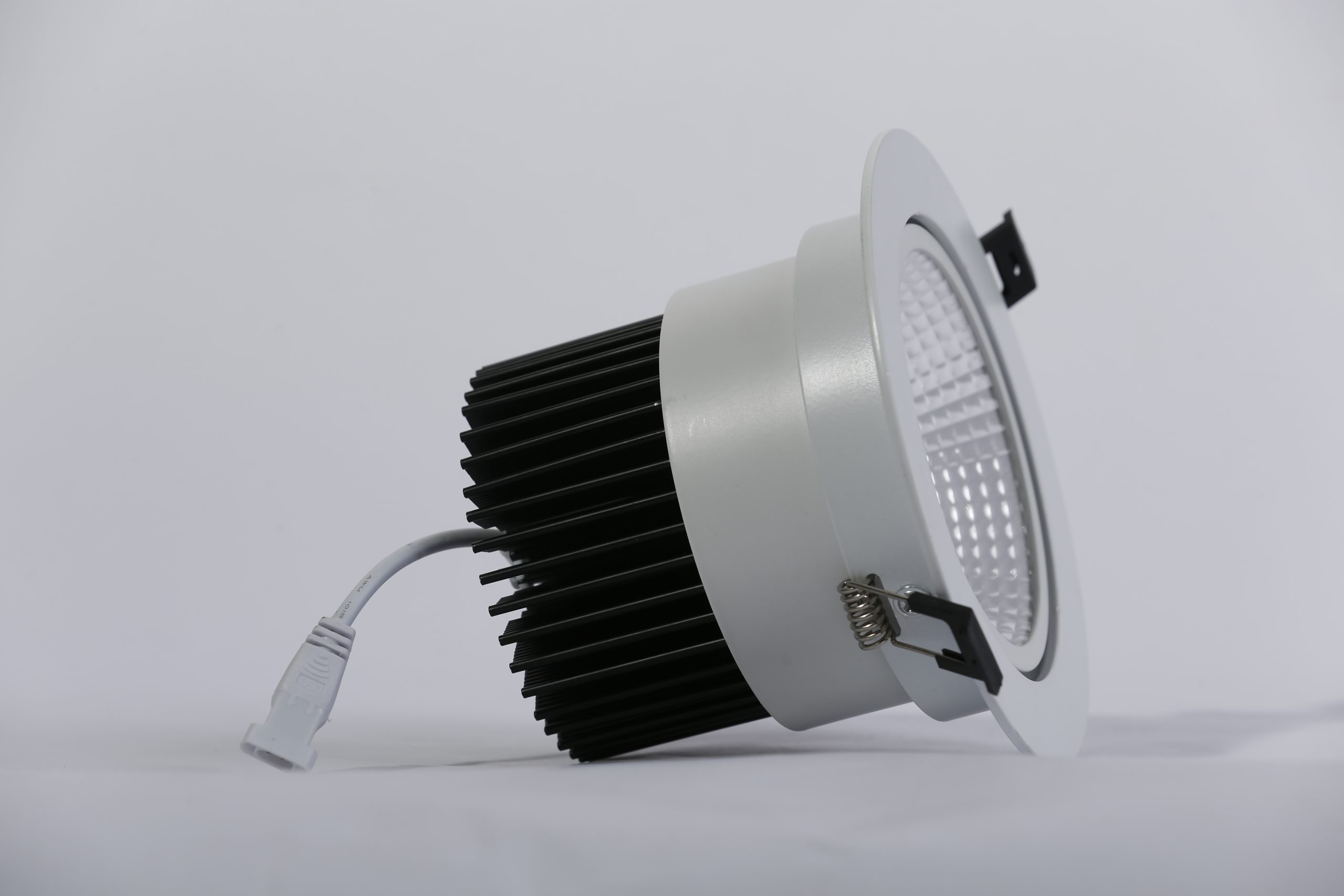

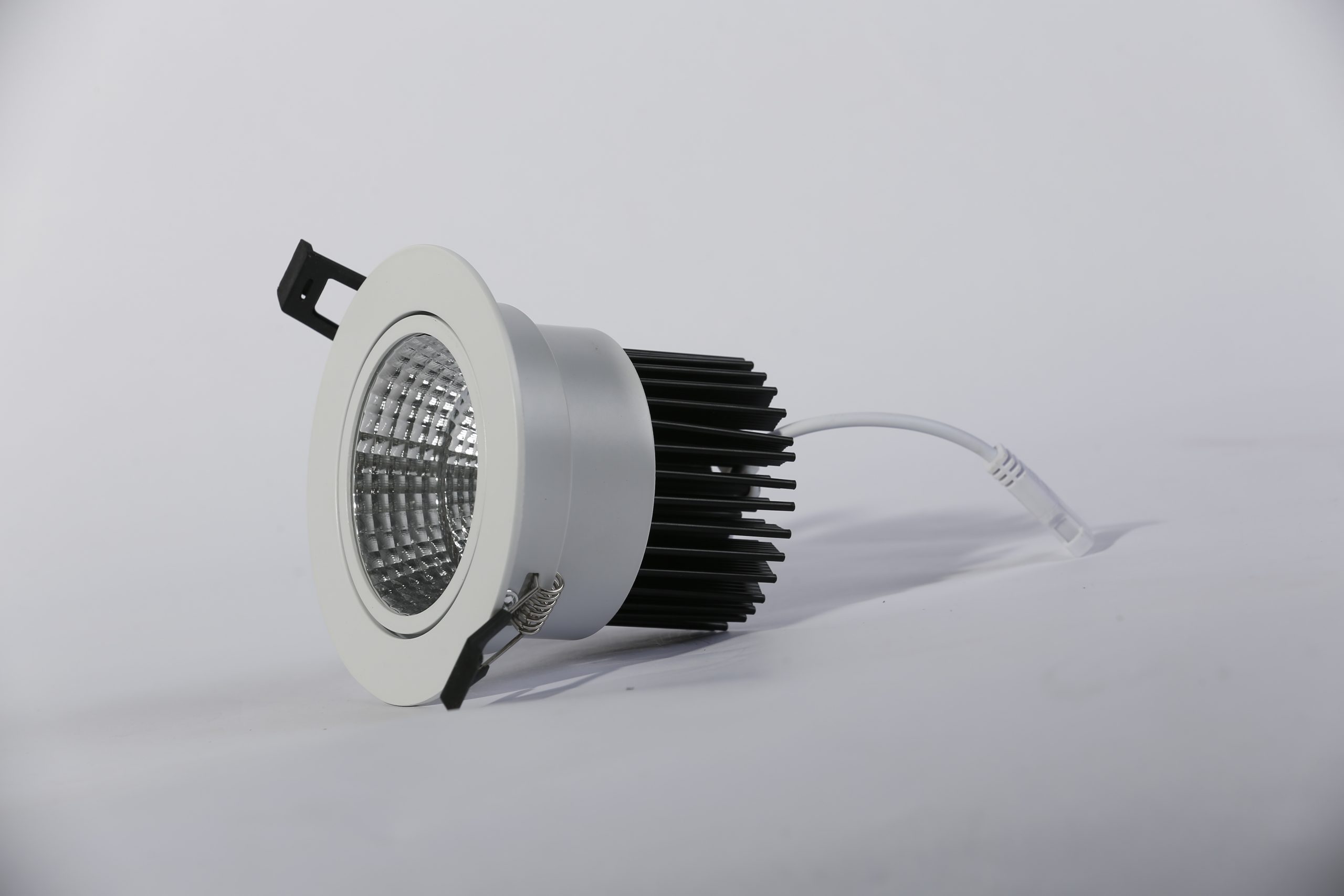

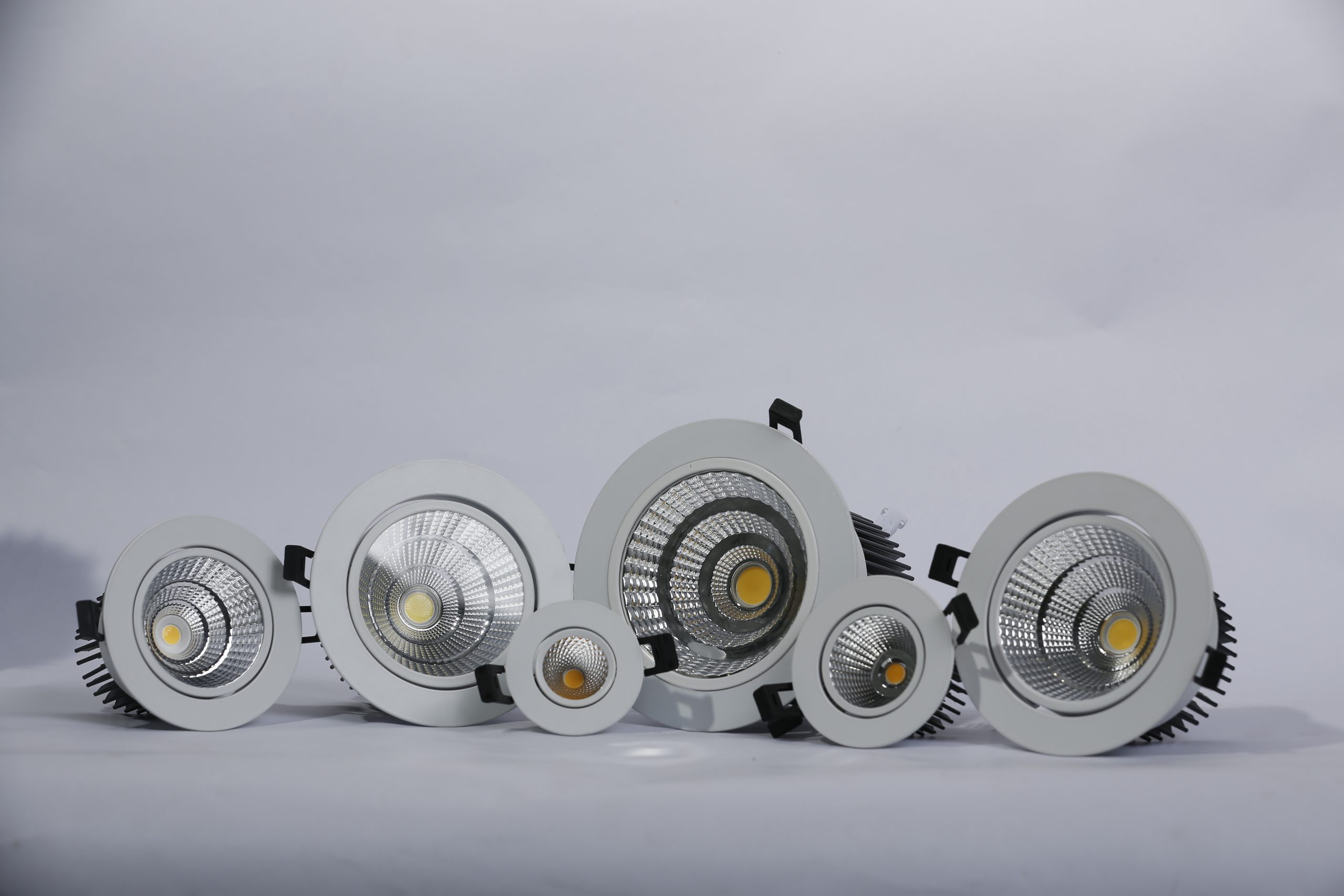

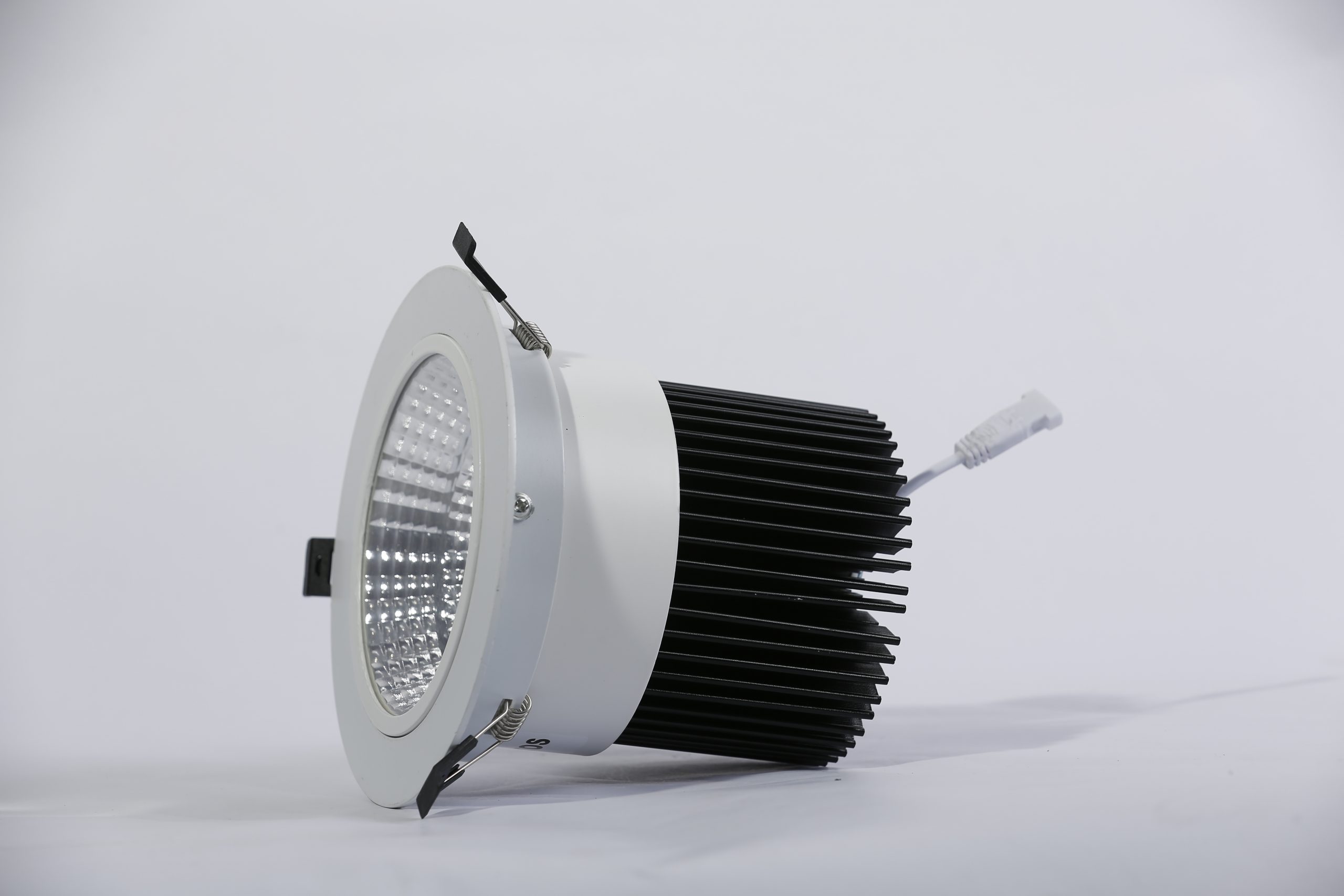

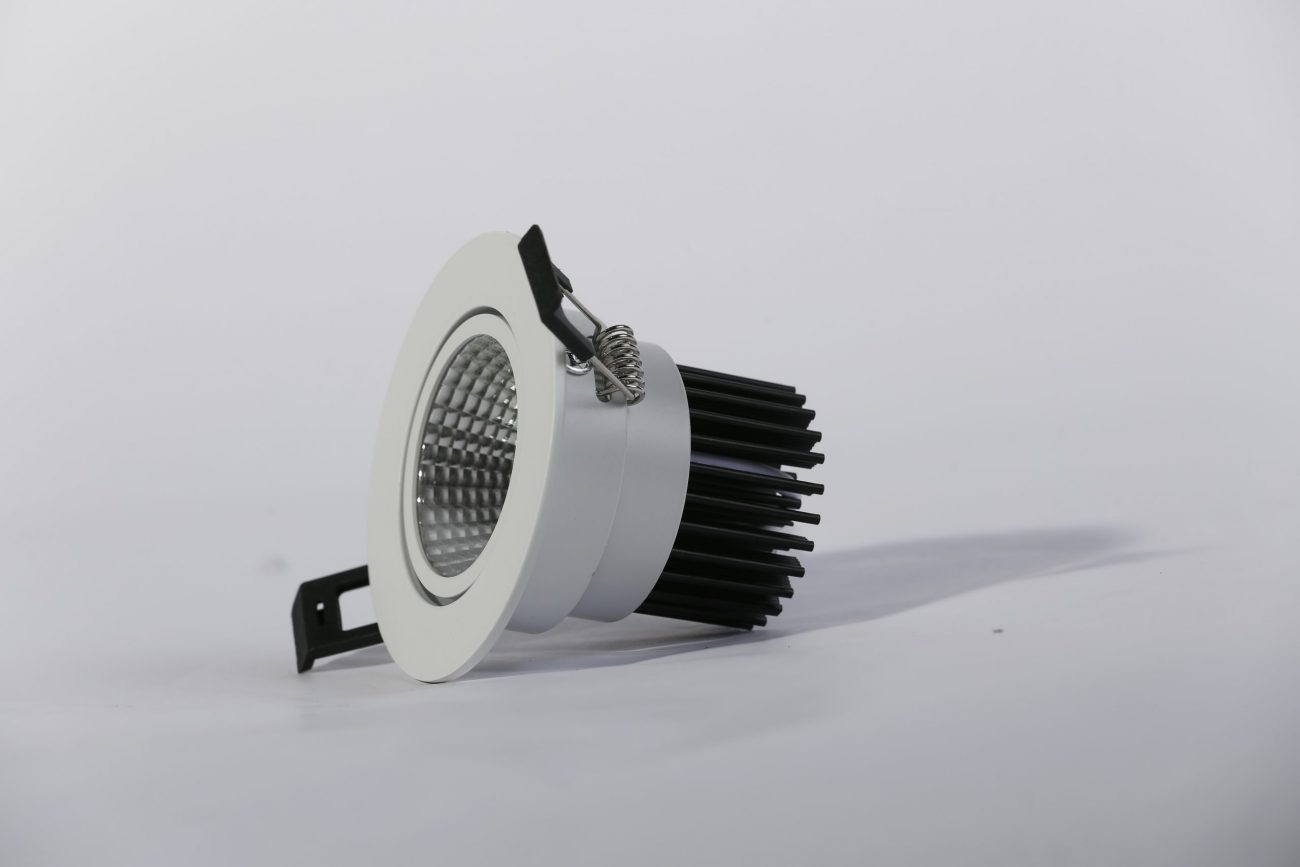

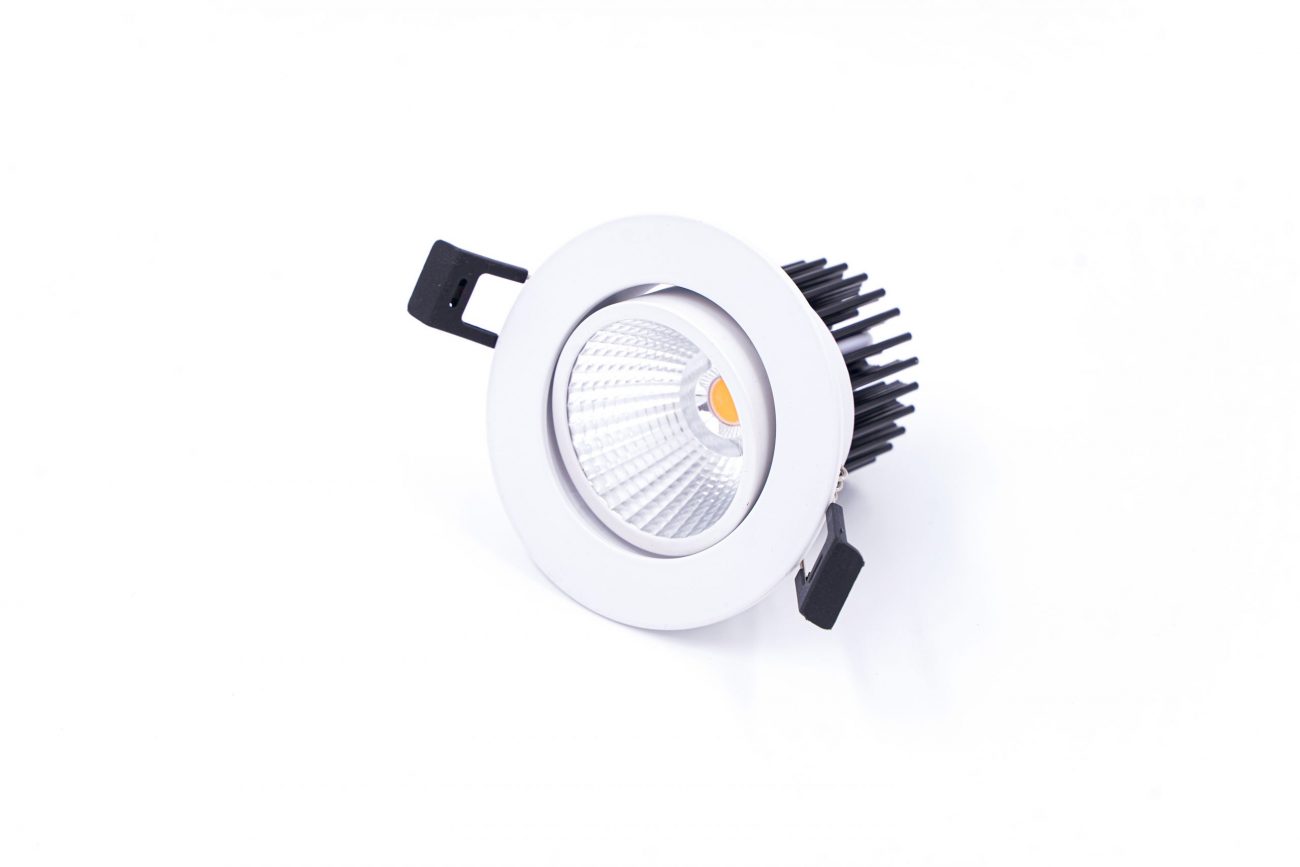

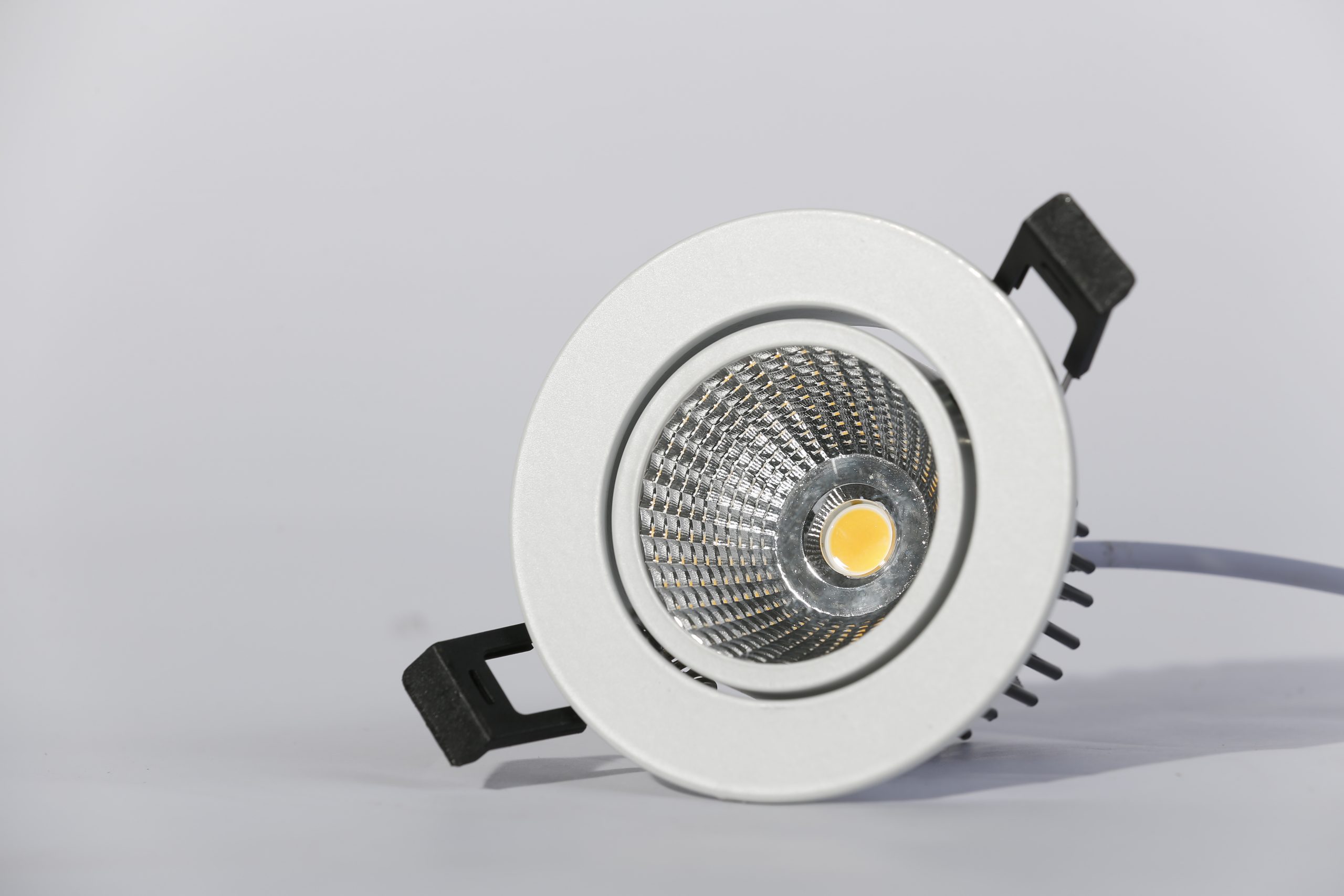

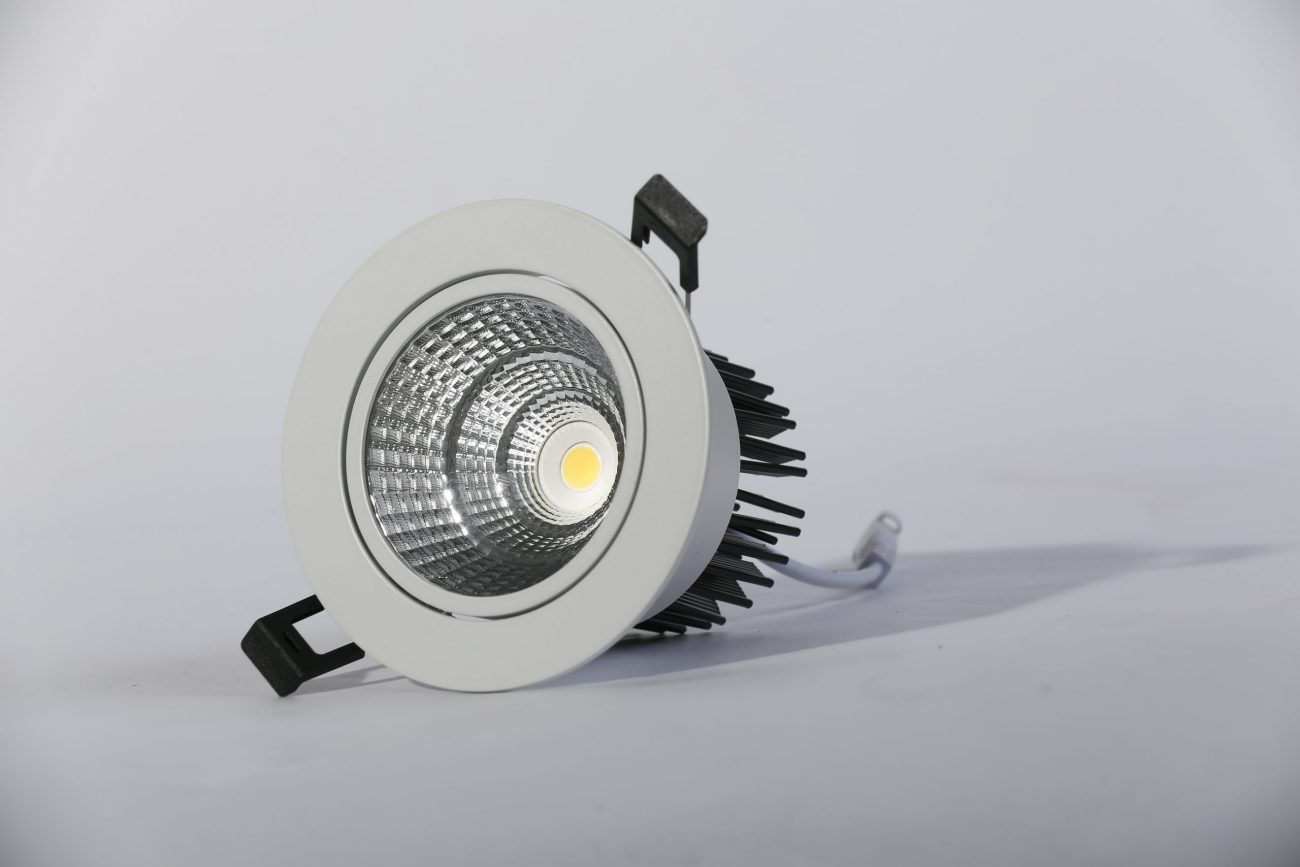

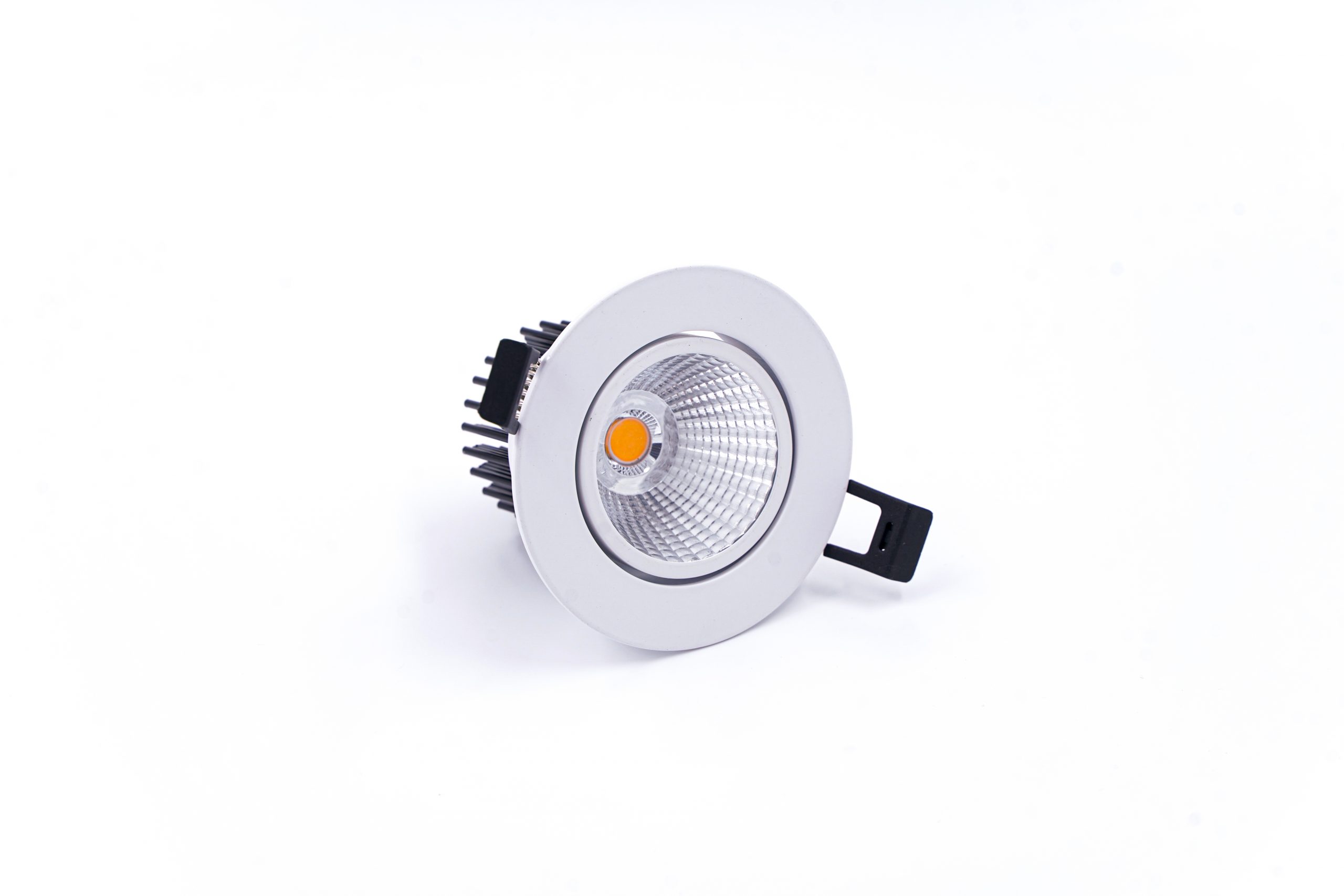

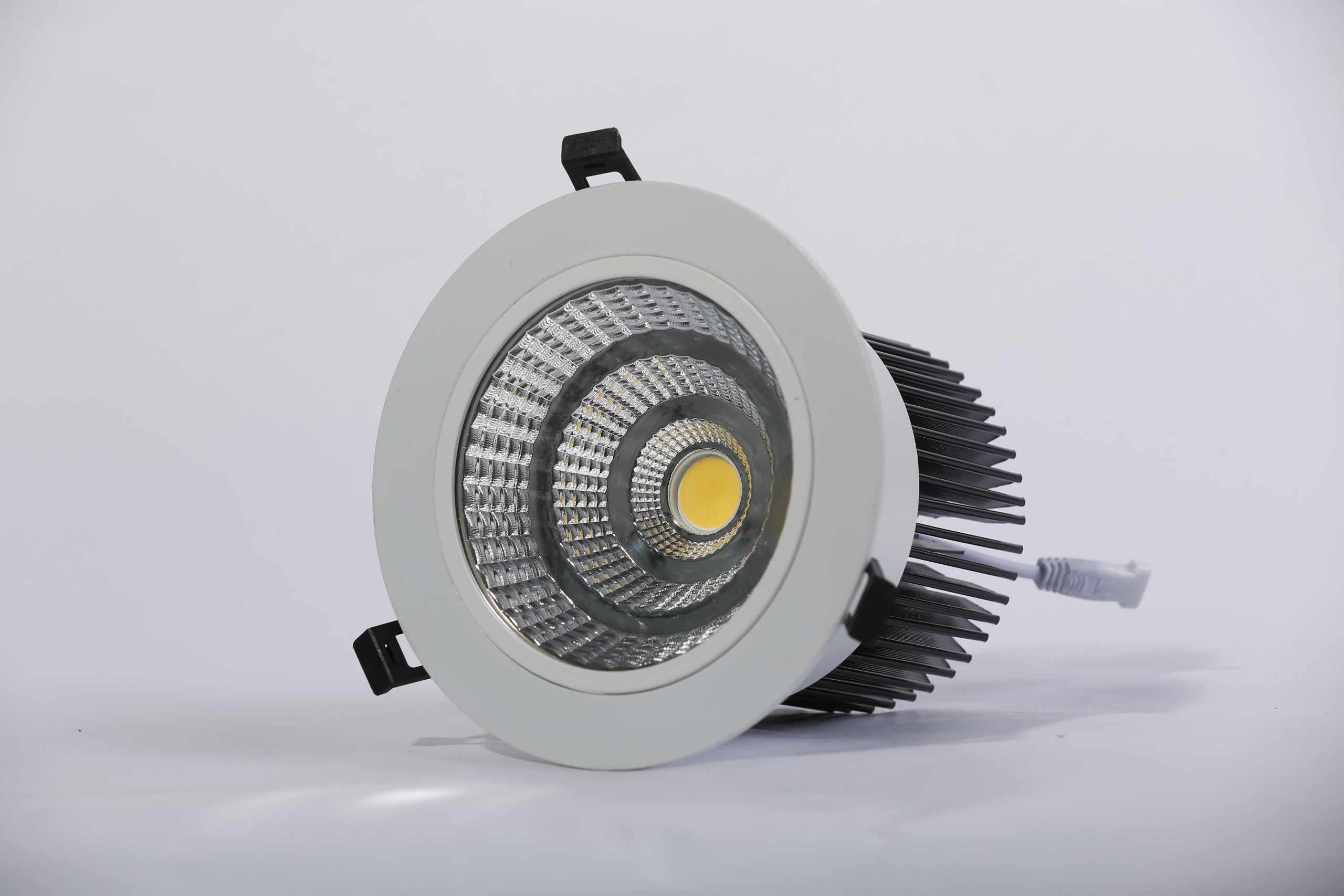

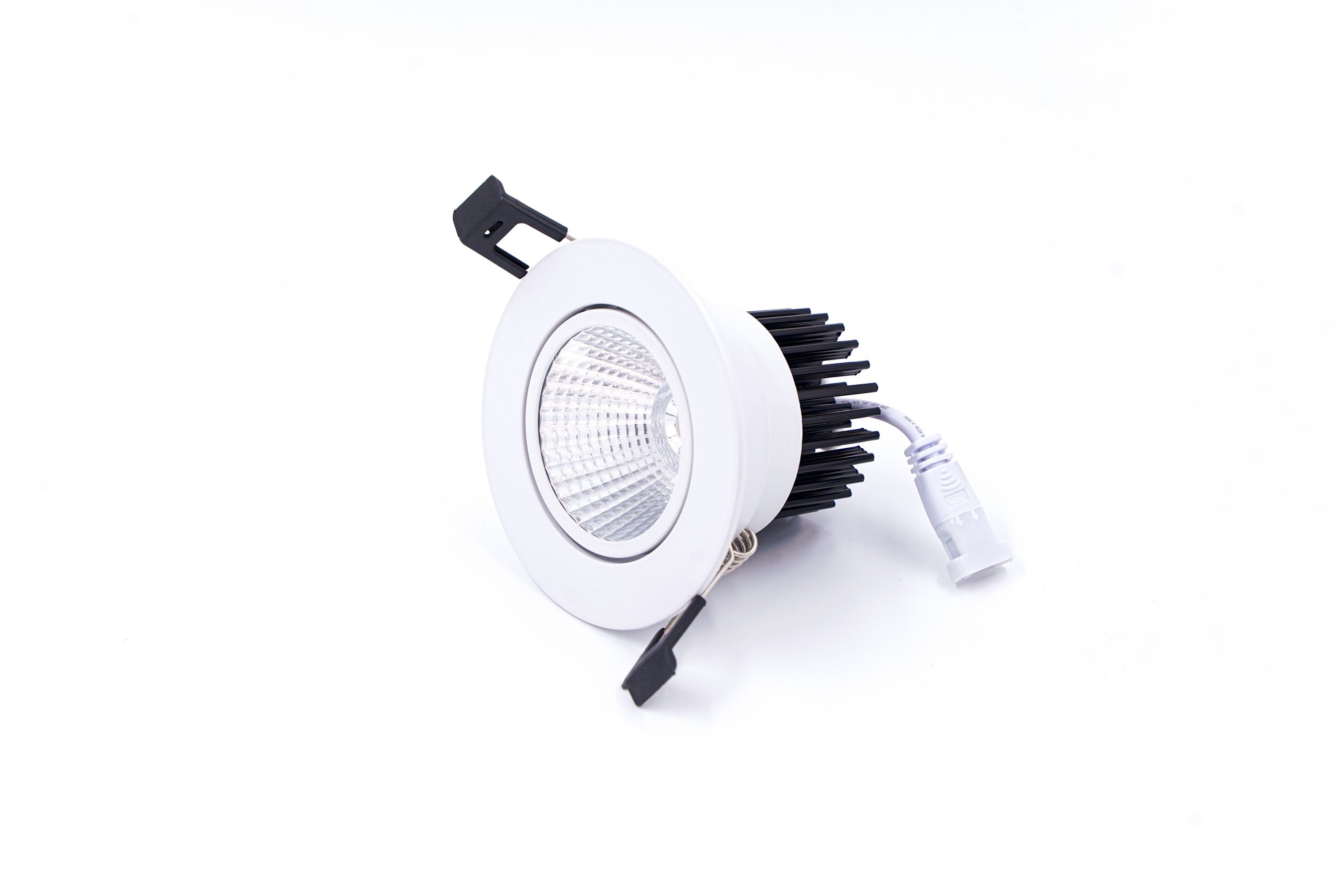

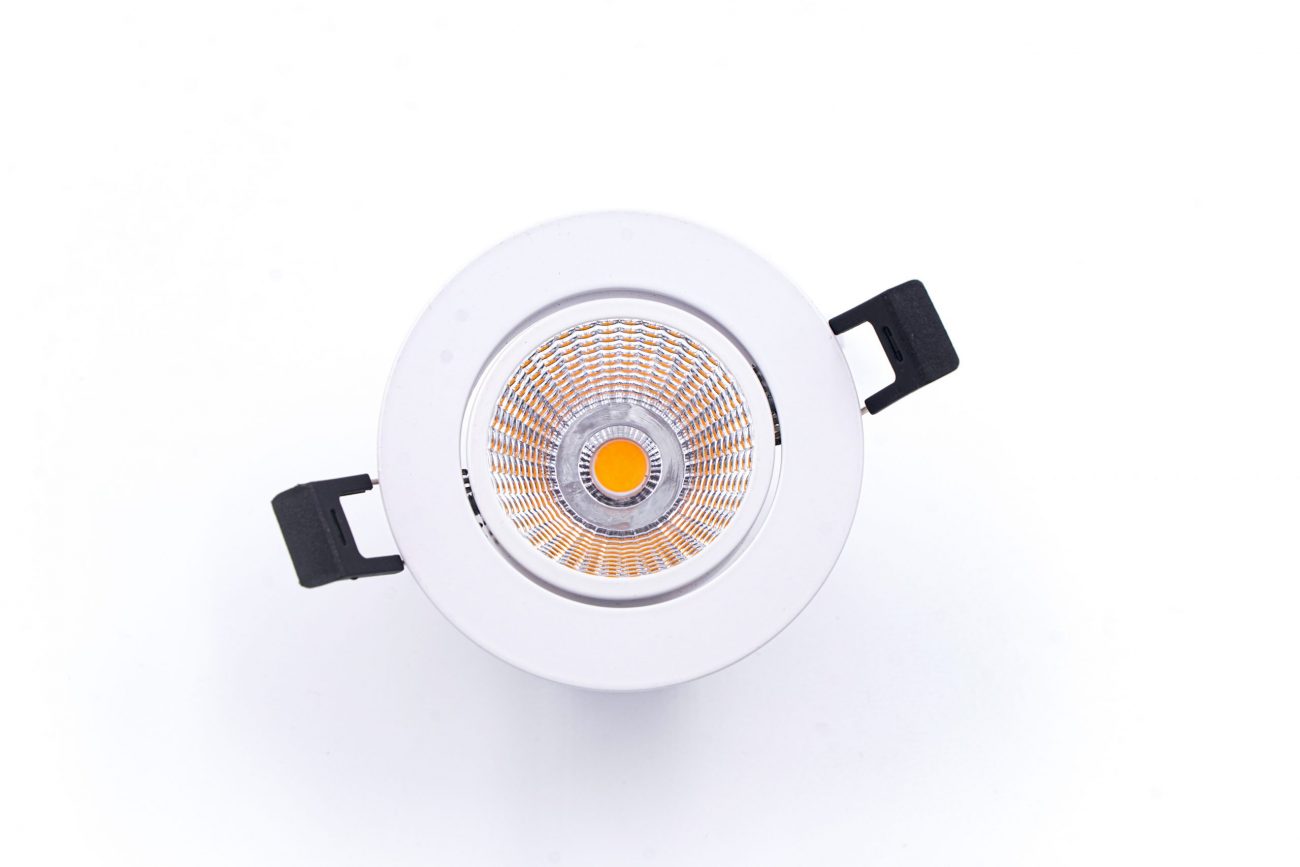

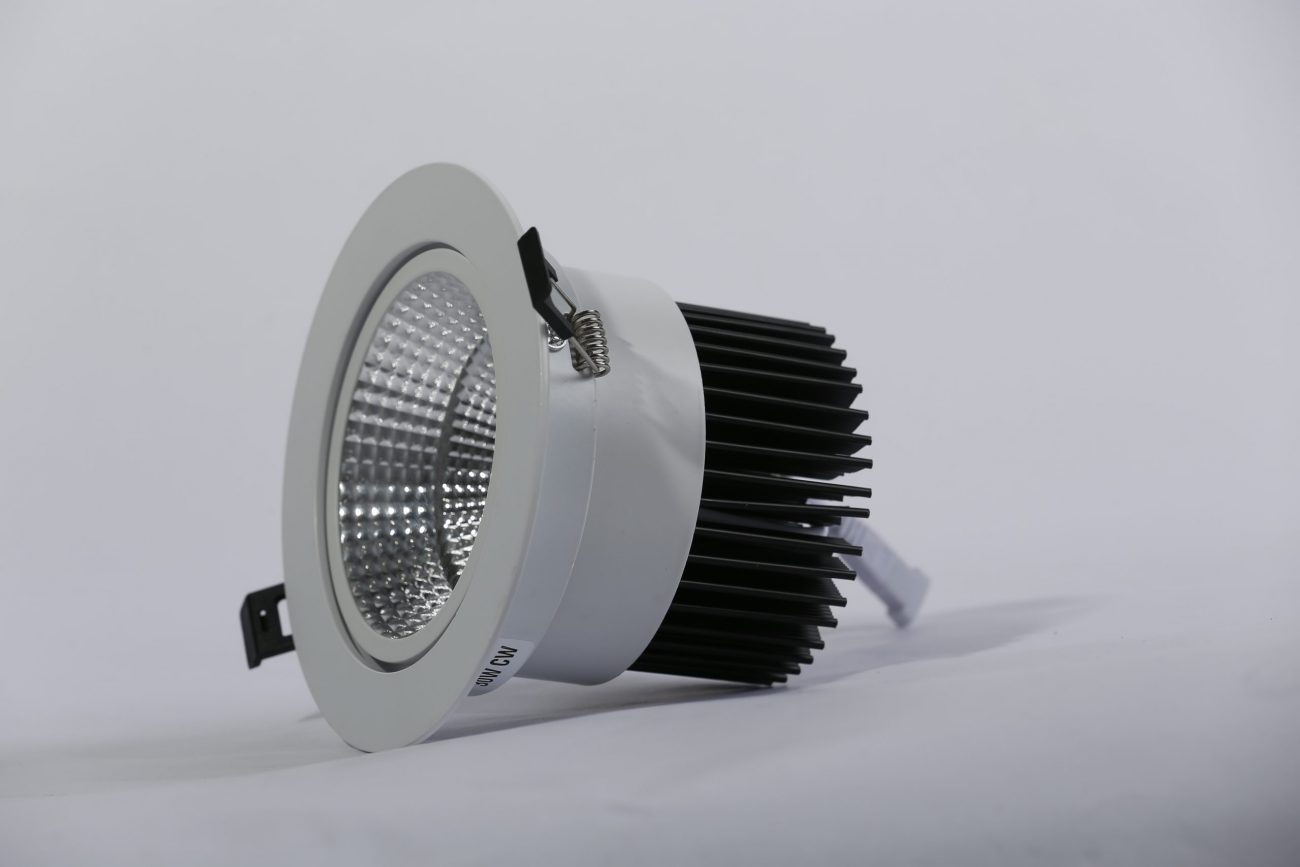

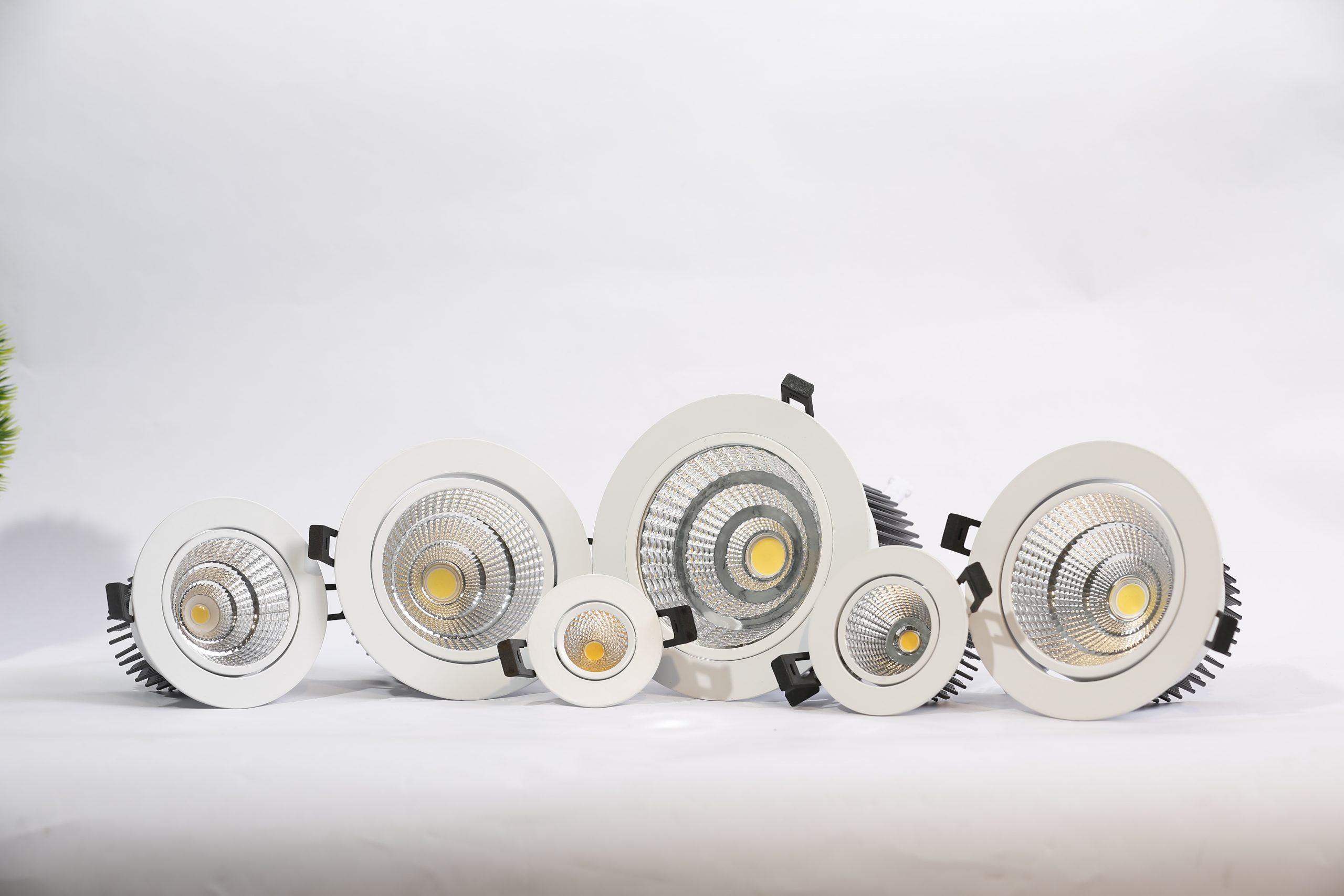

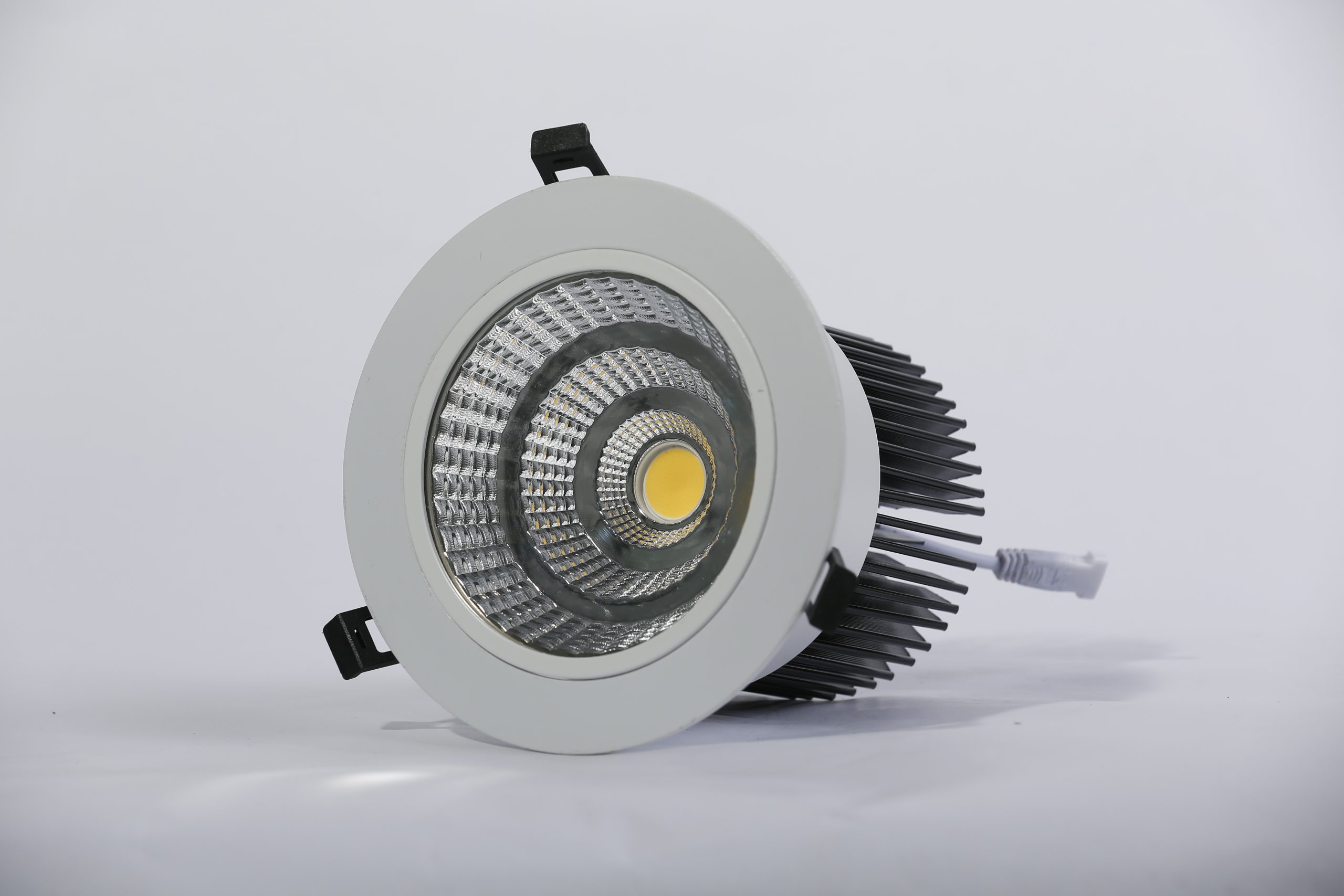

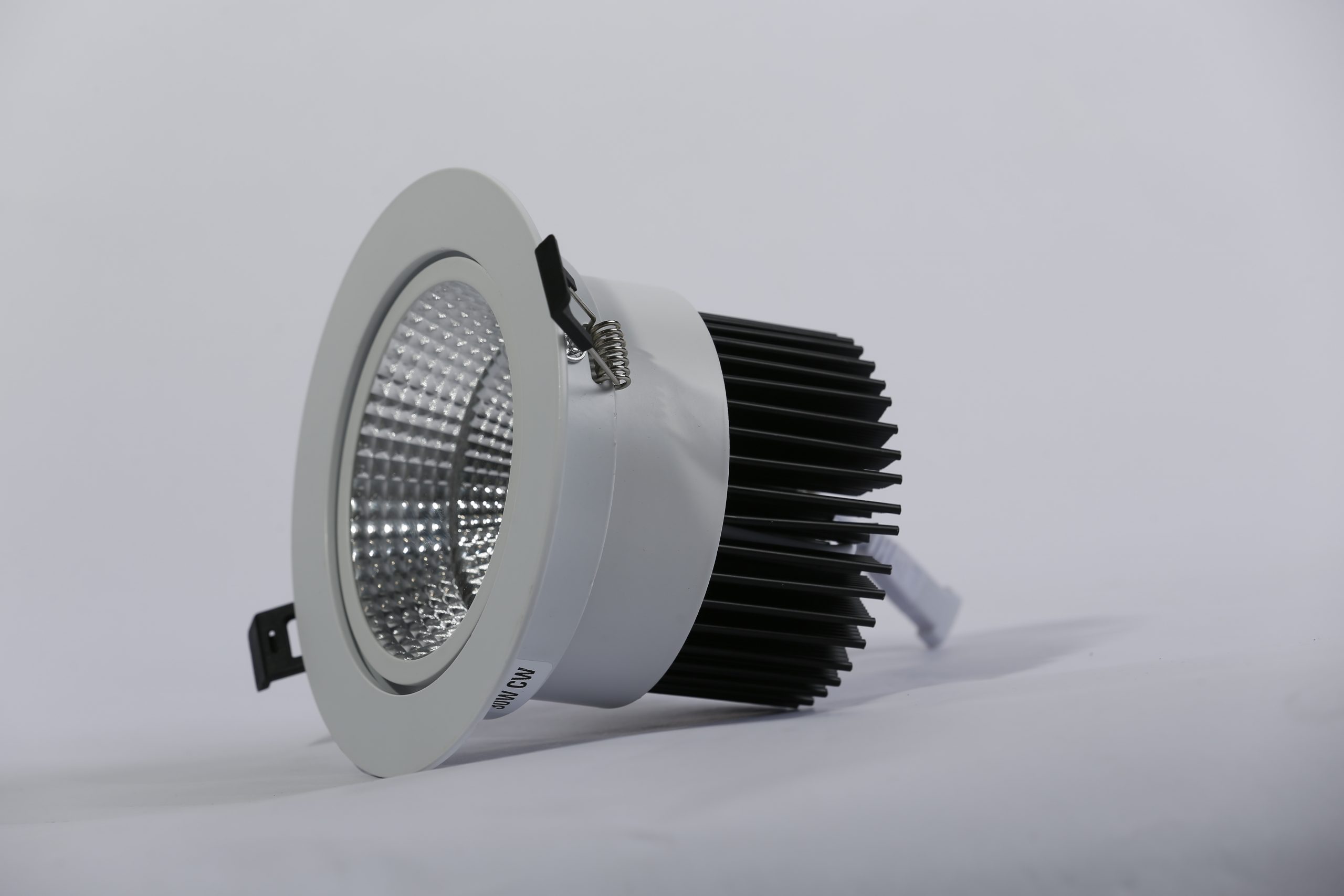

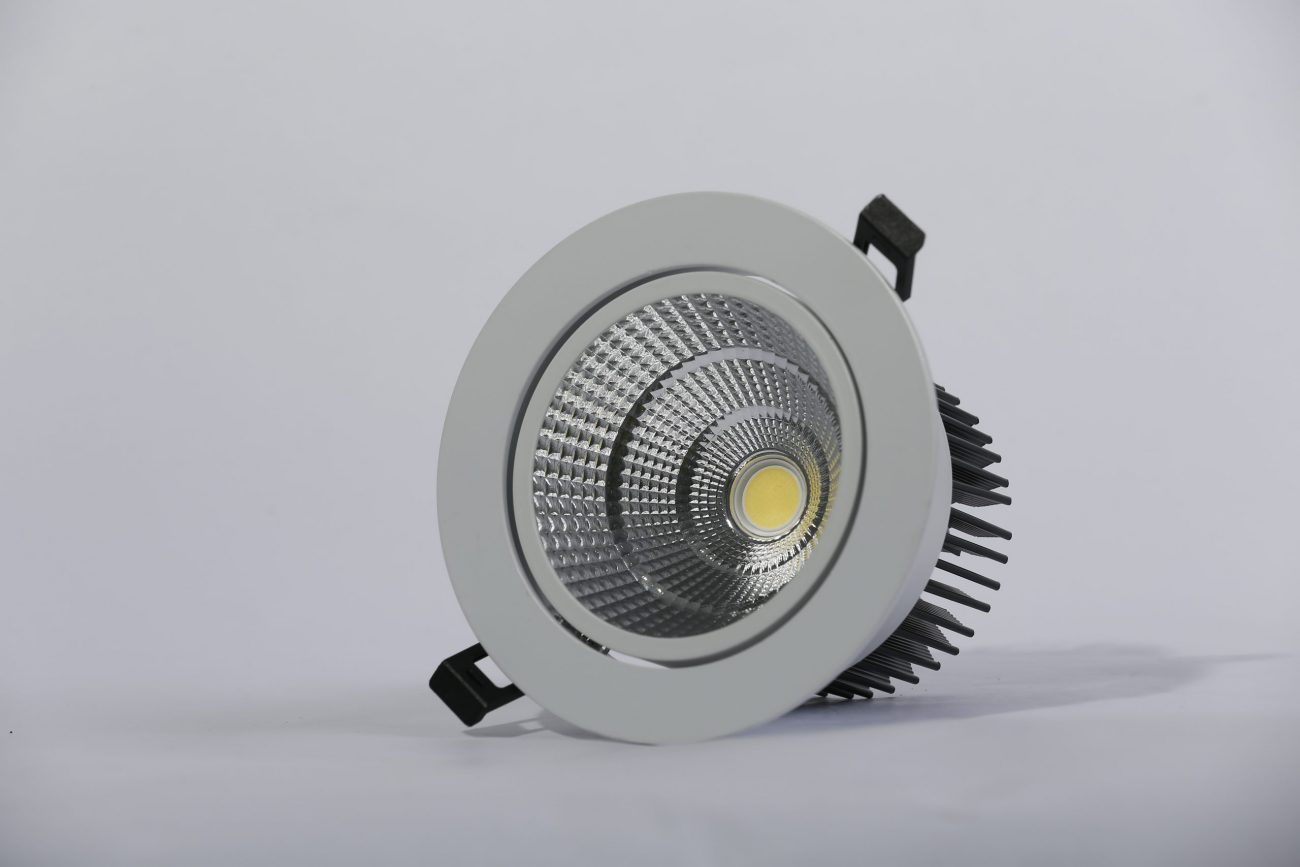

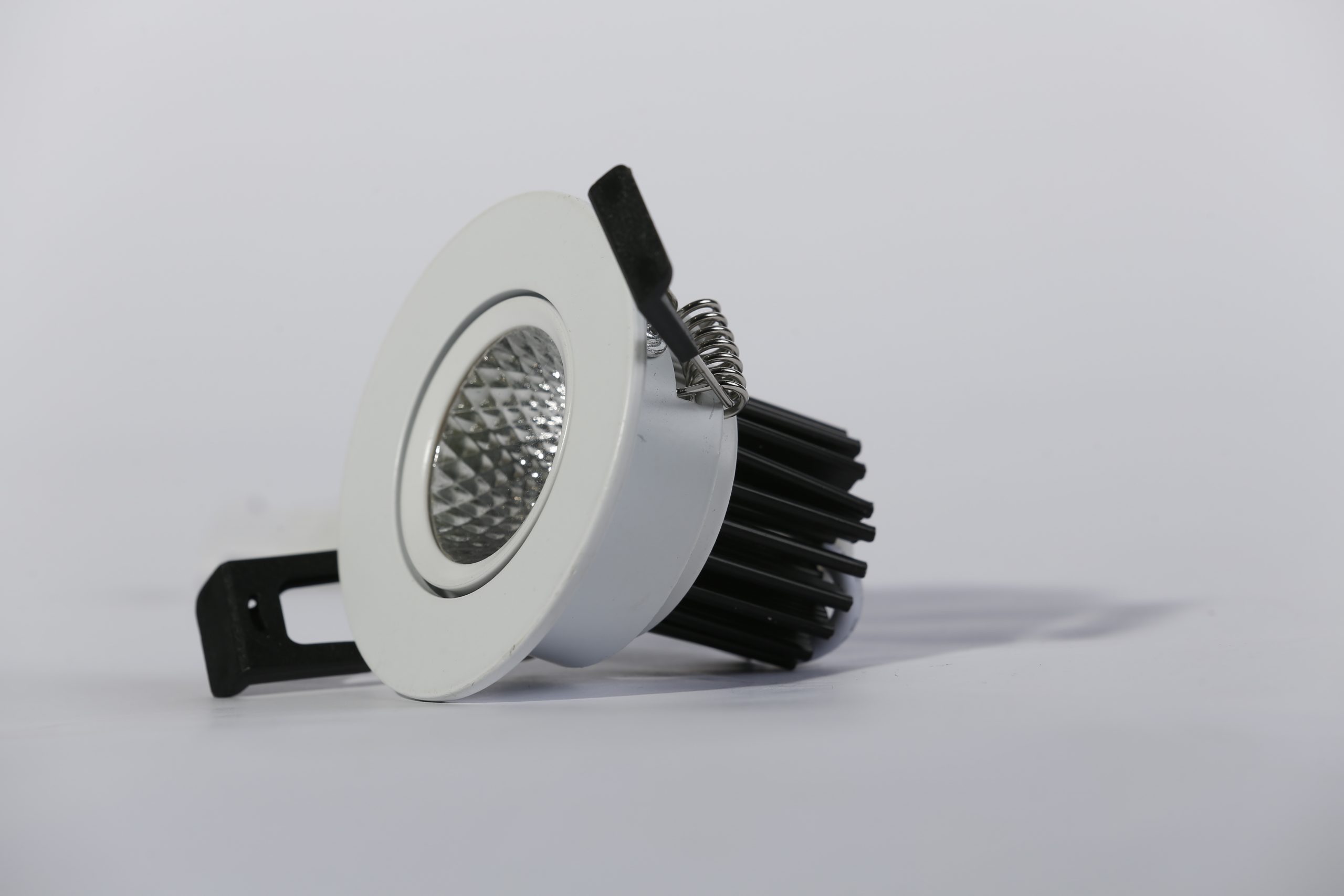

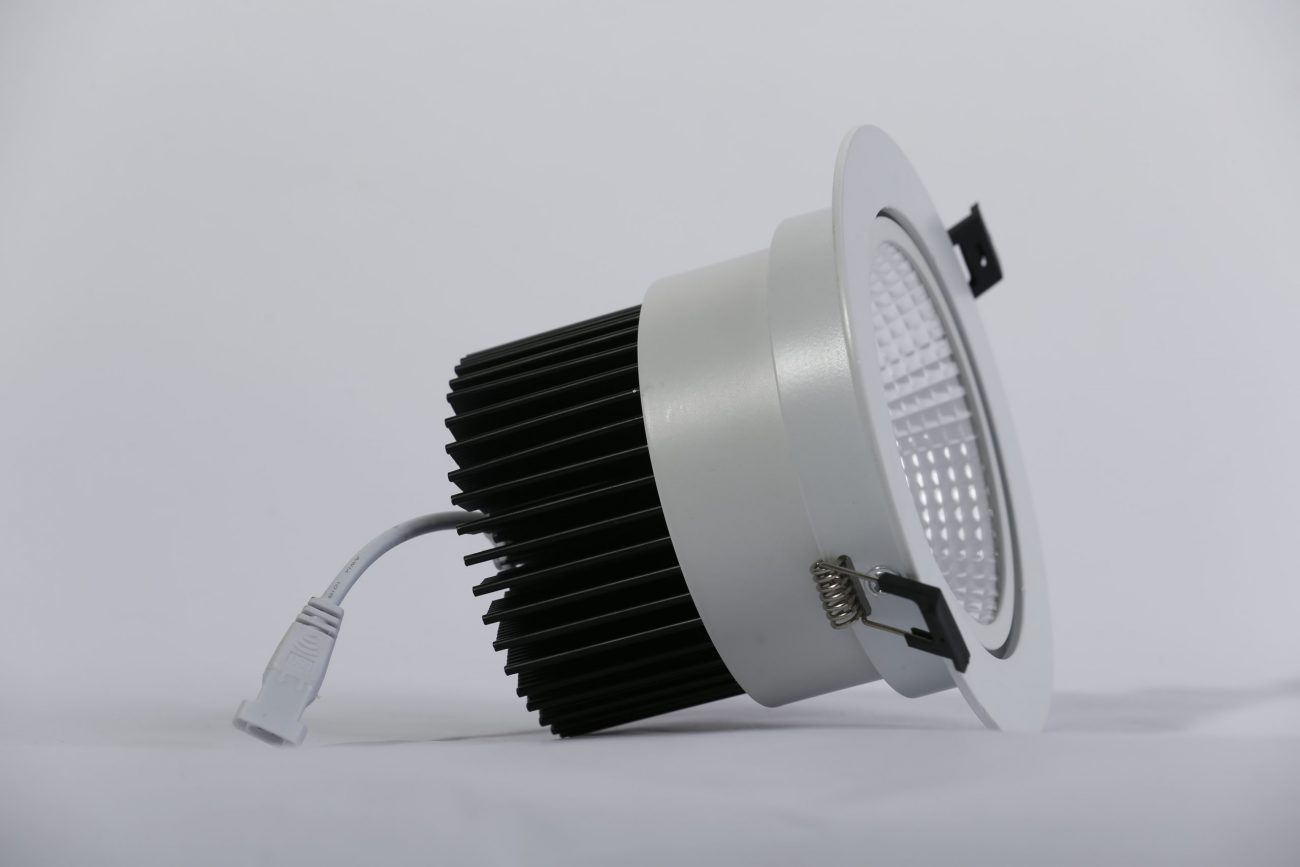

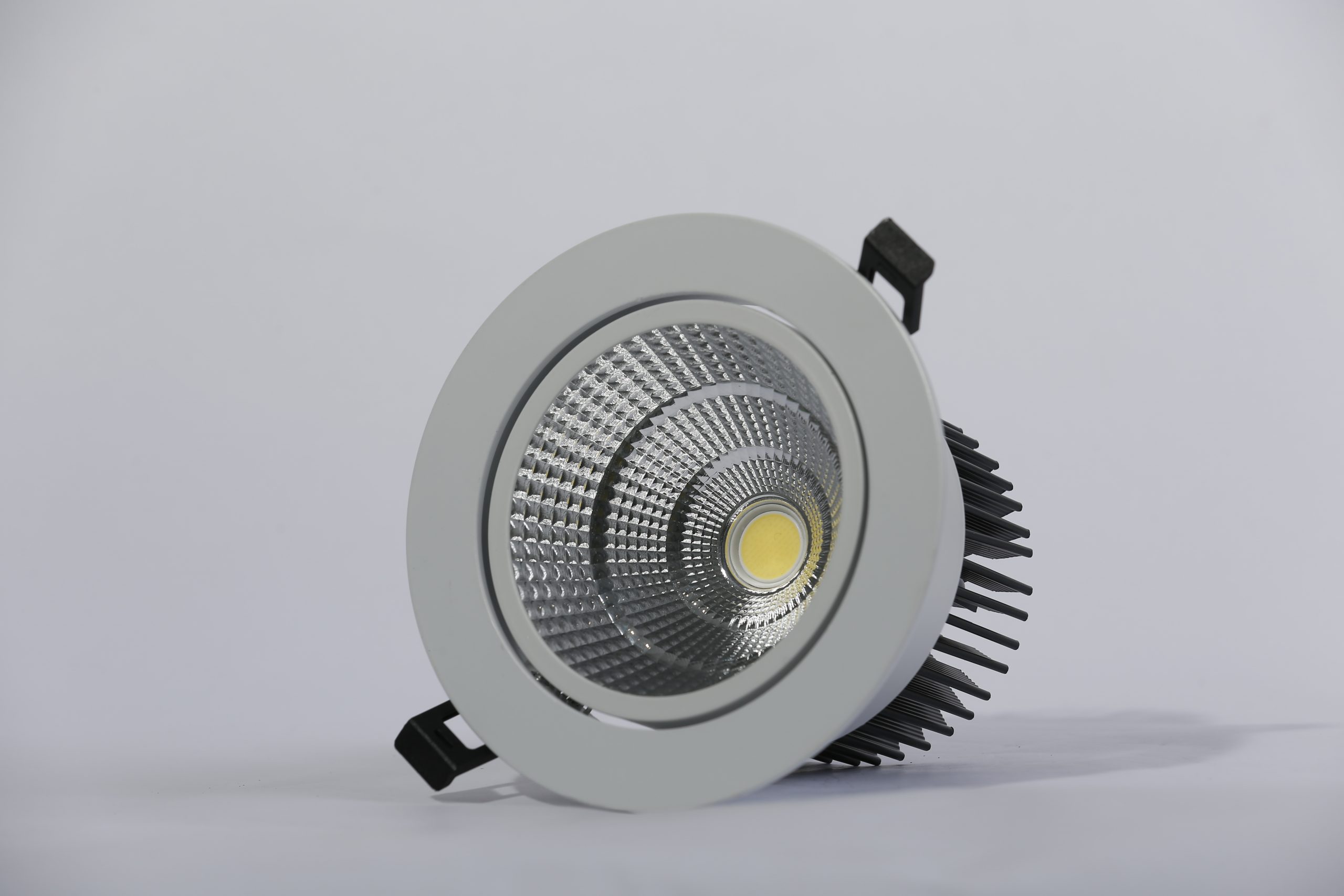

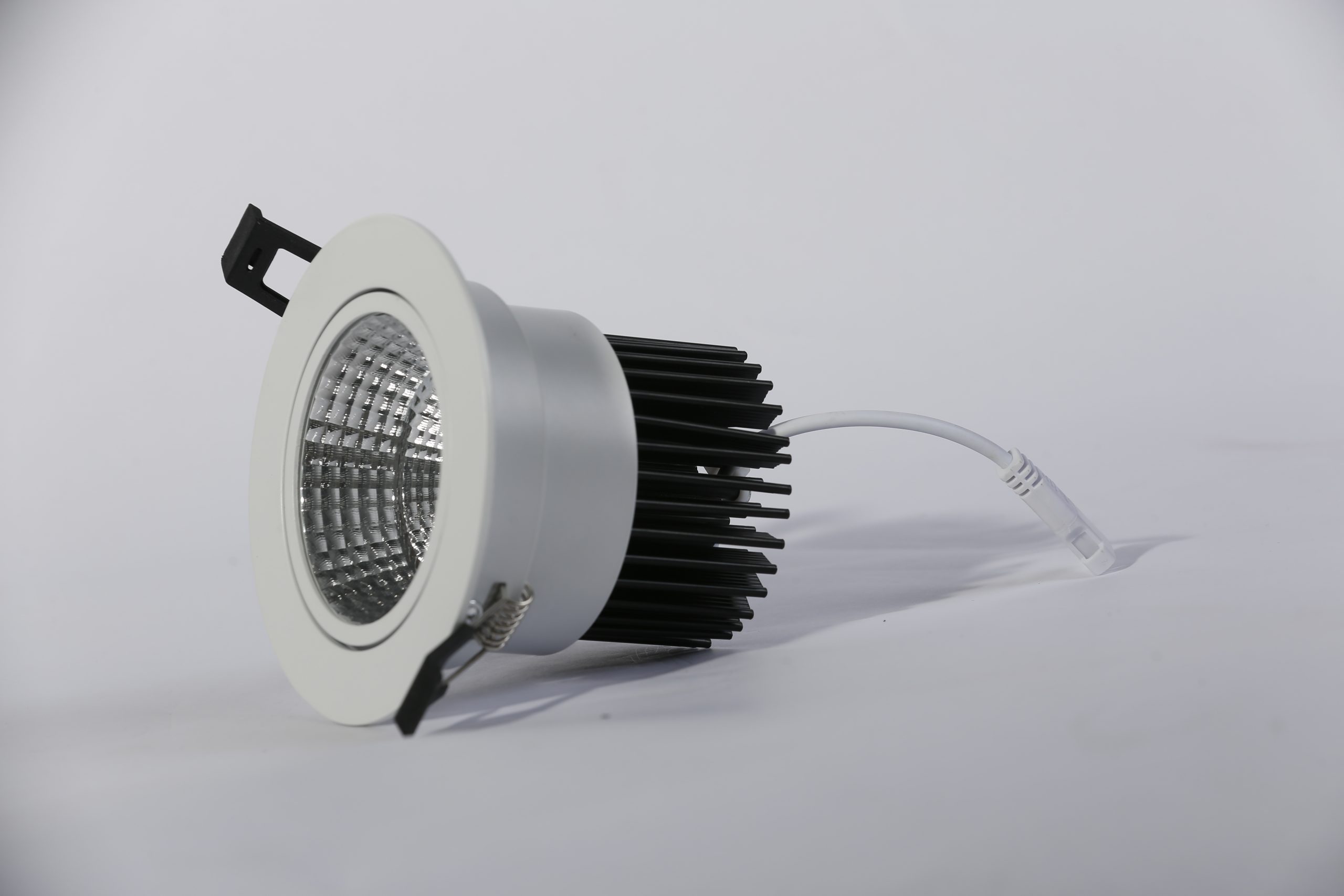

Magnum COB

Ready for delivery in 4–5 weeks

Product details

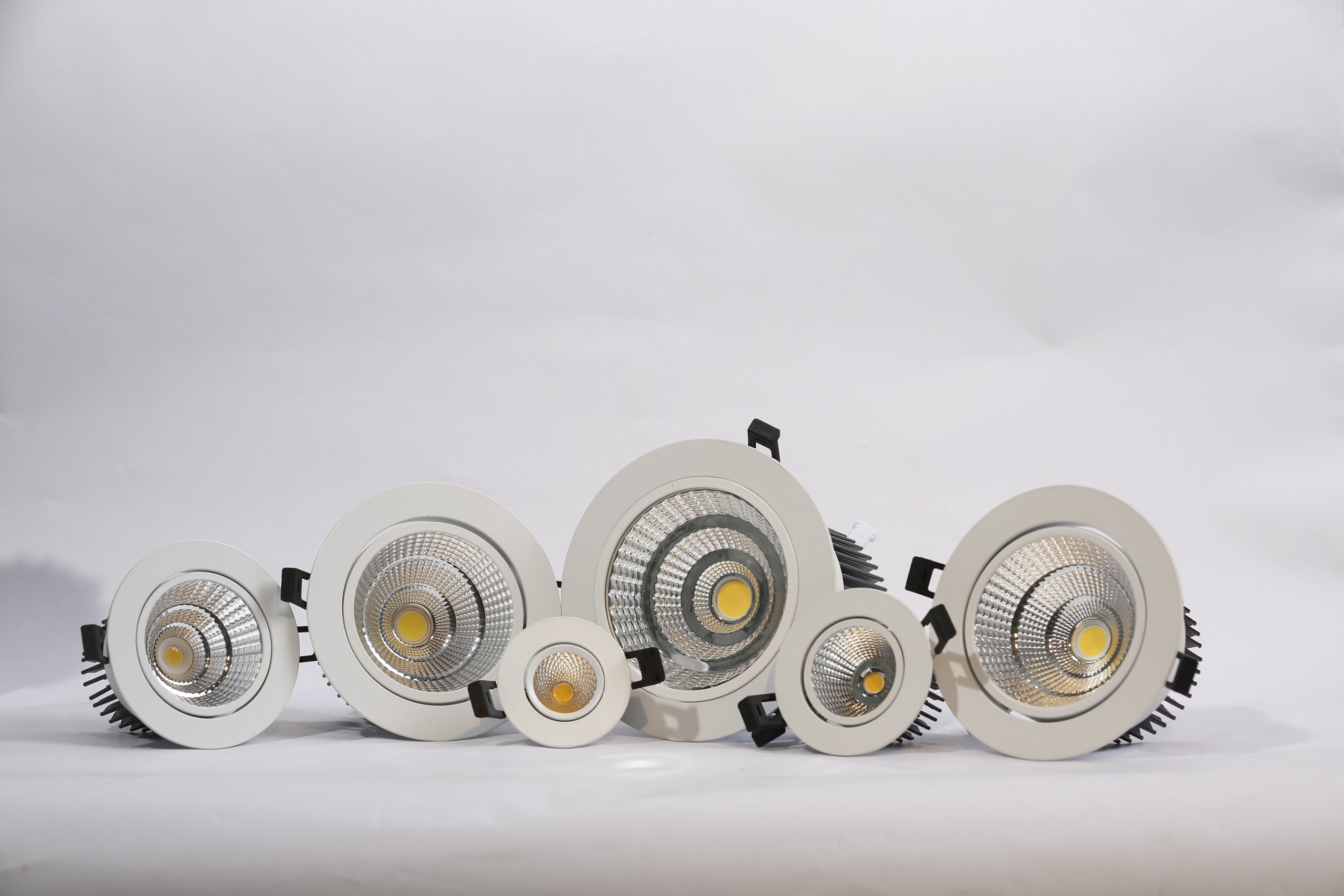

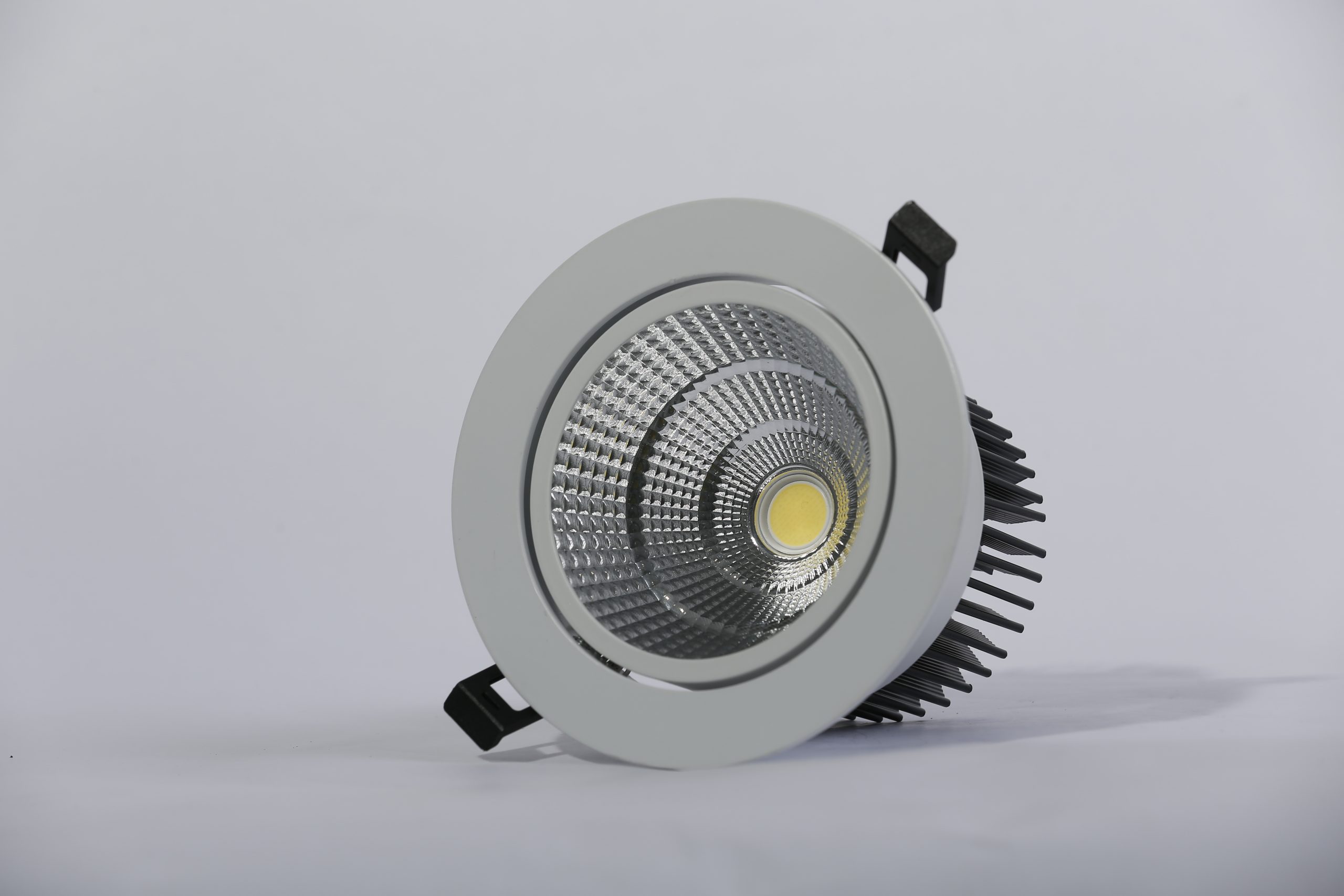

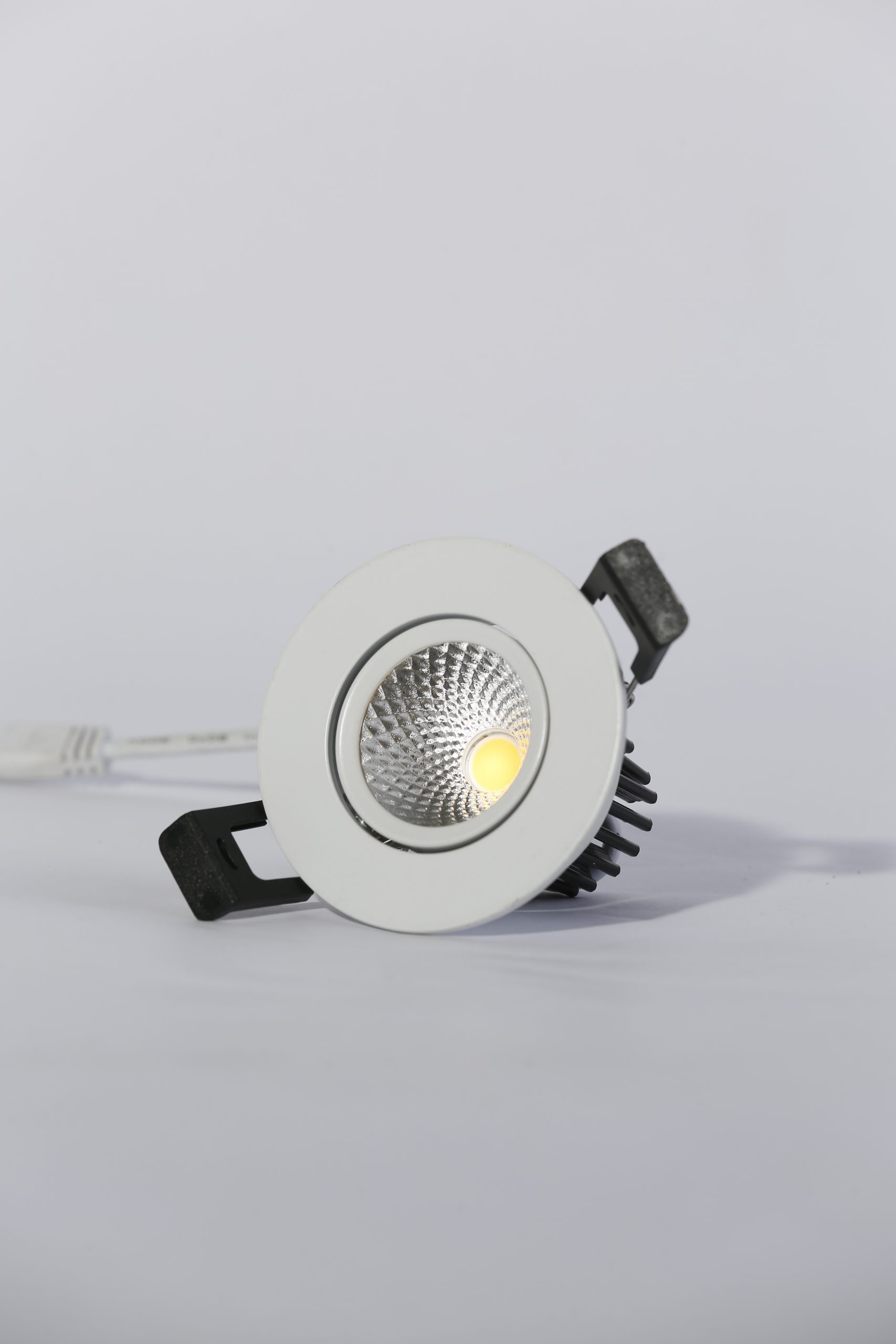

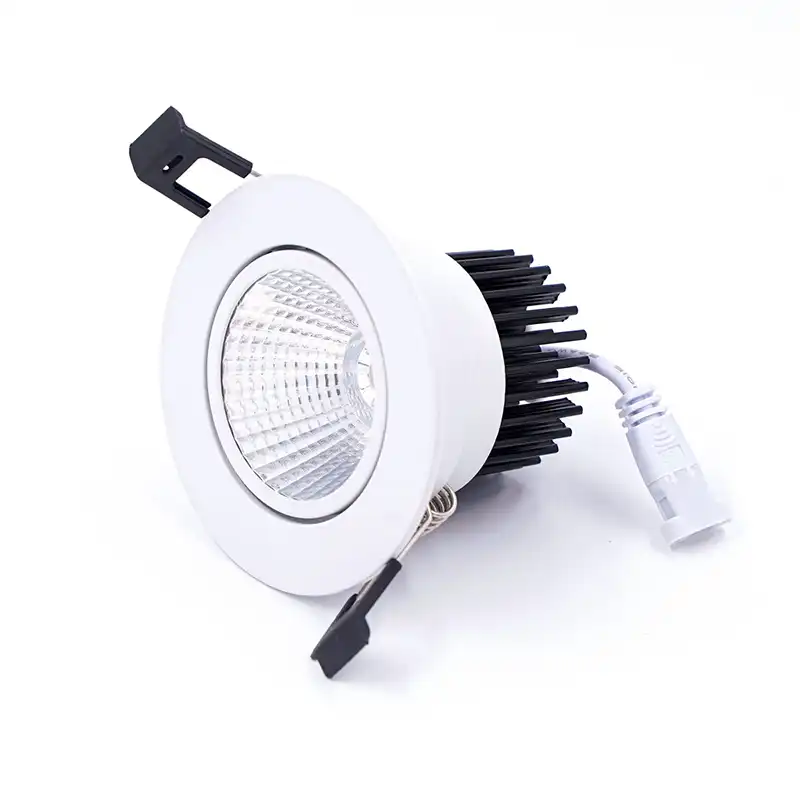

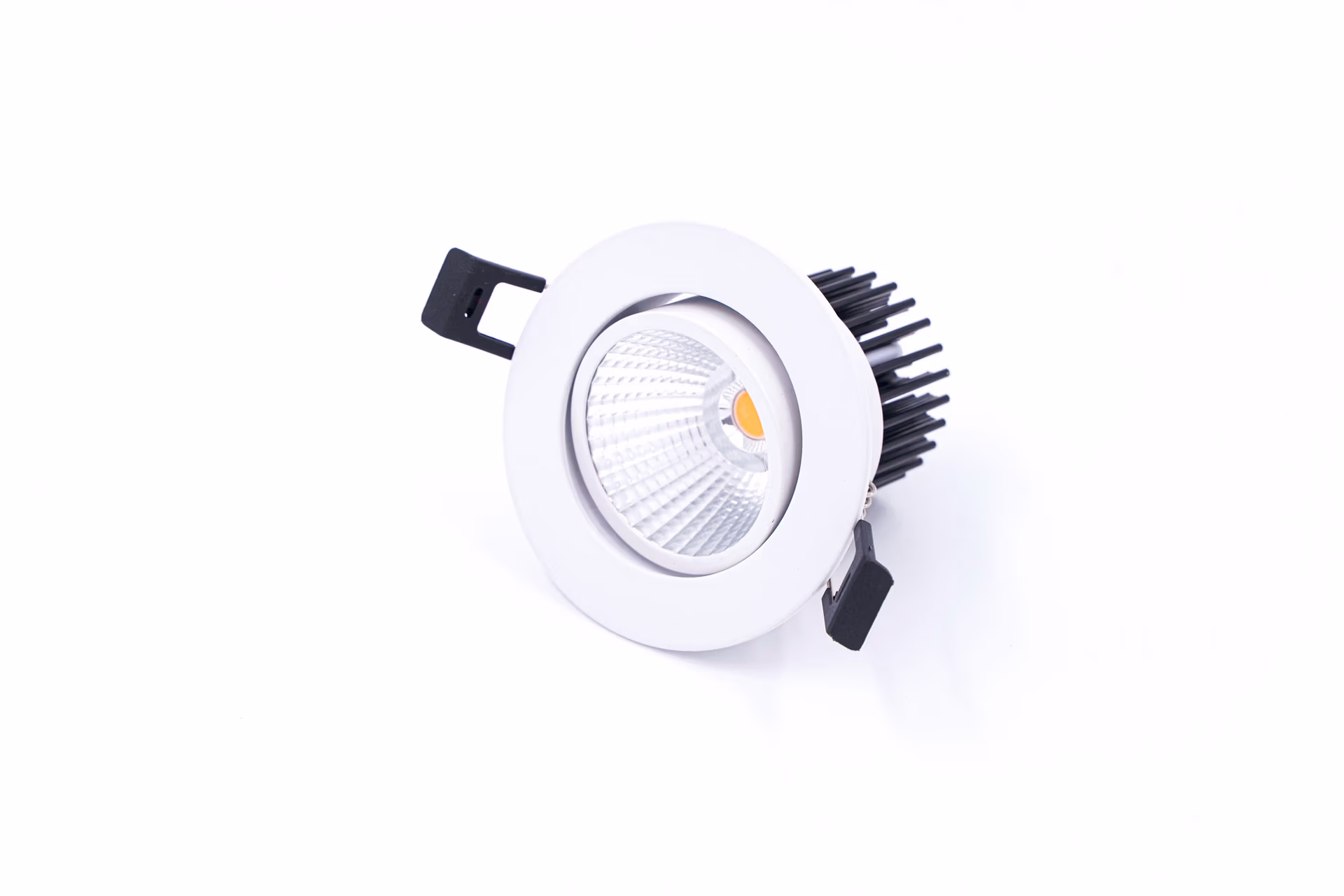

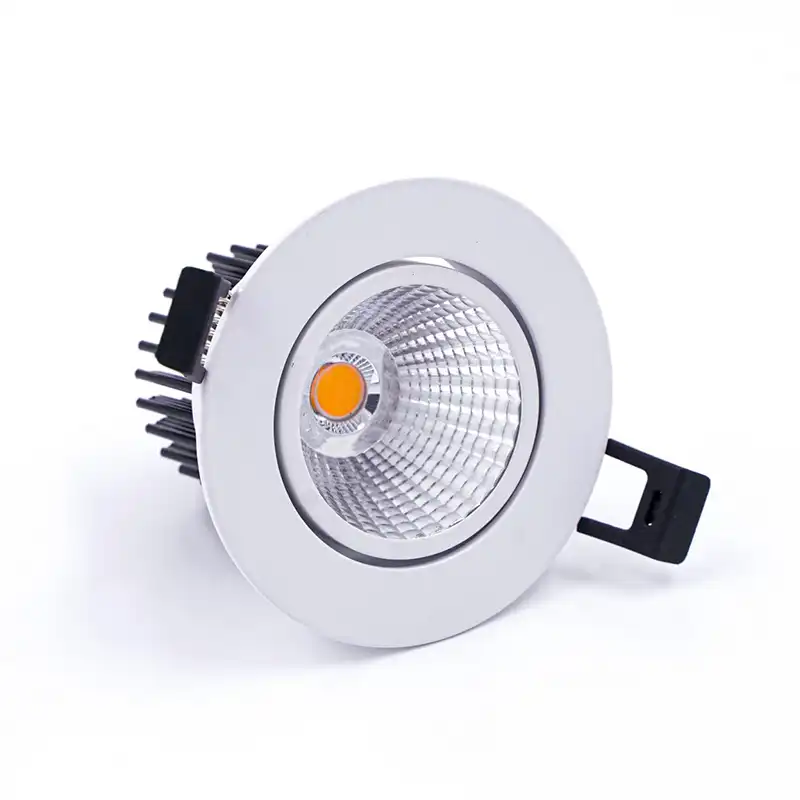

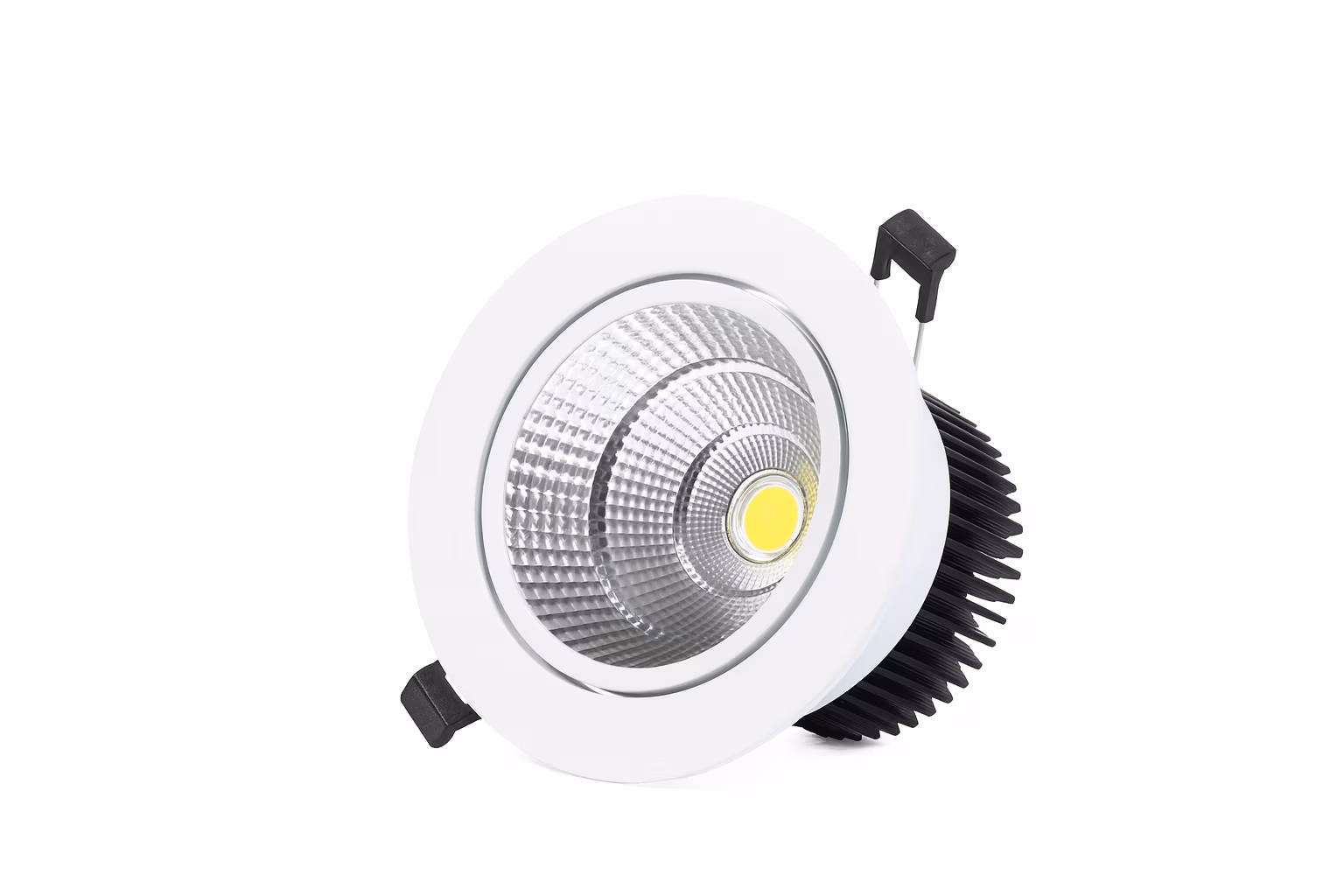

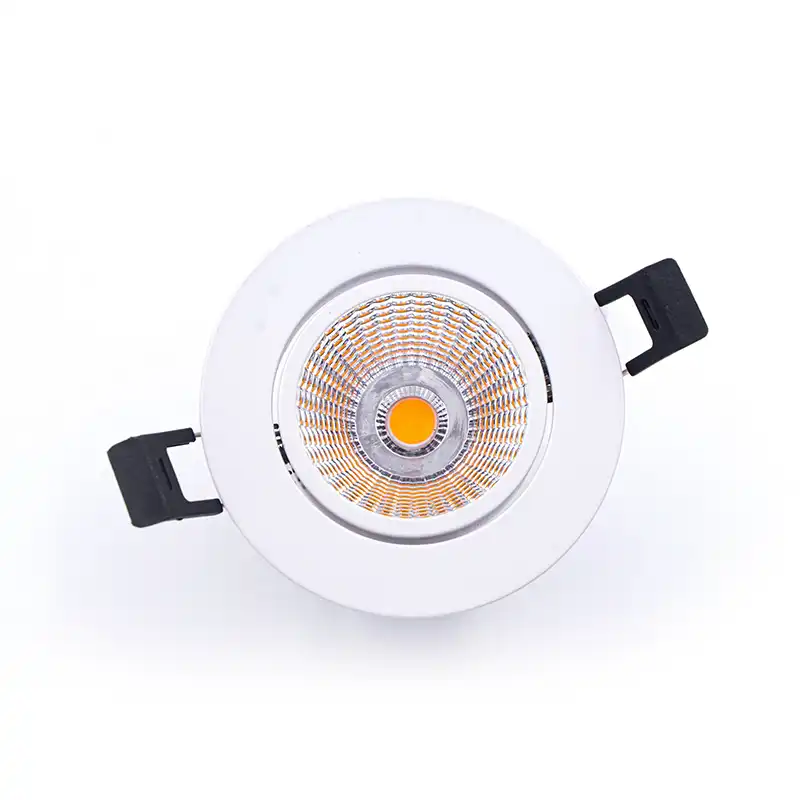

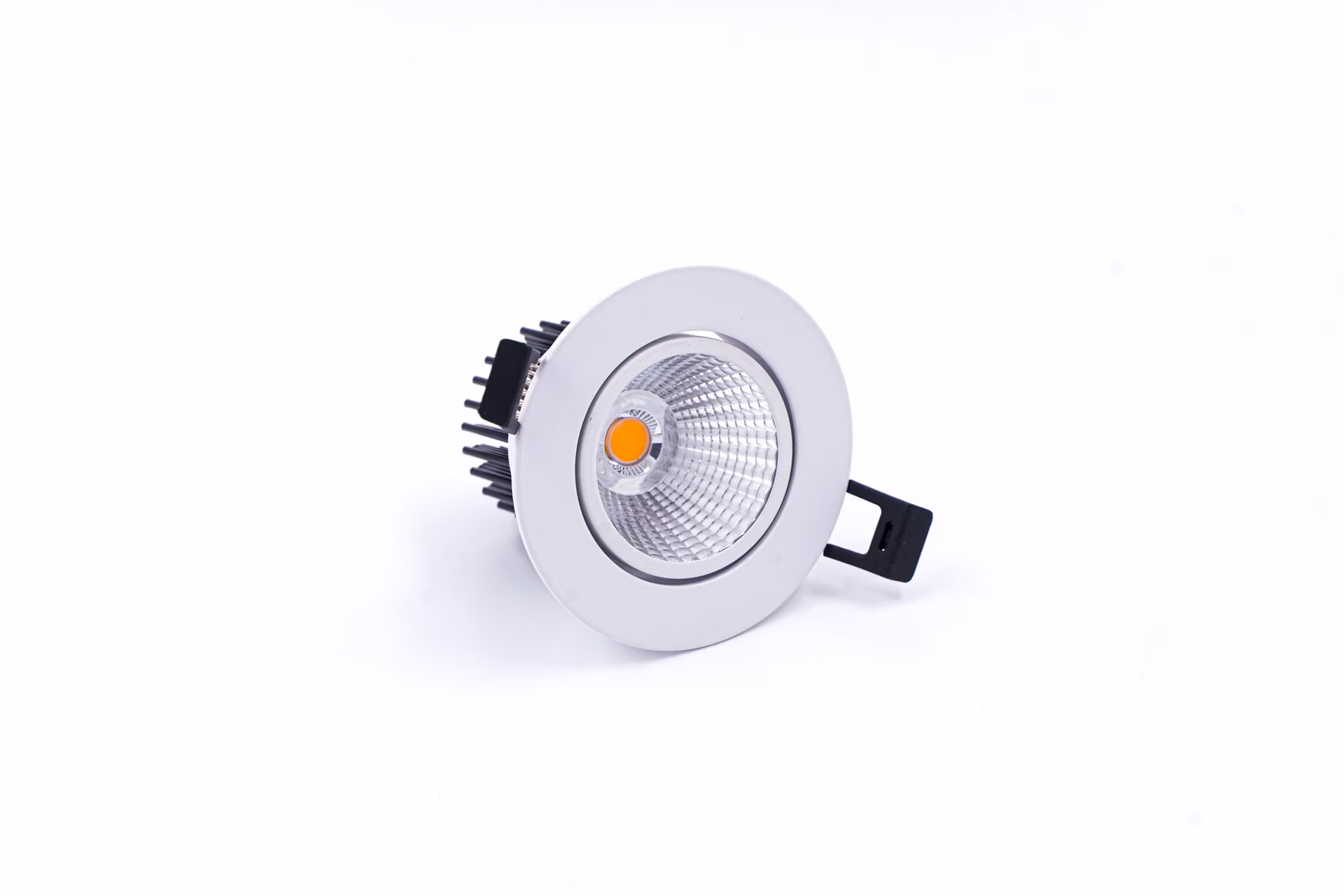

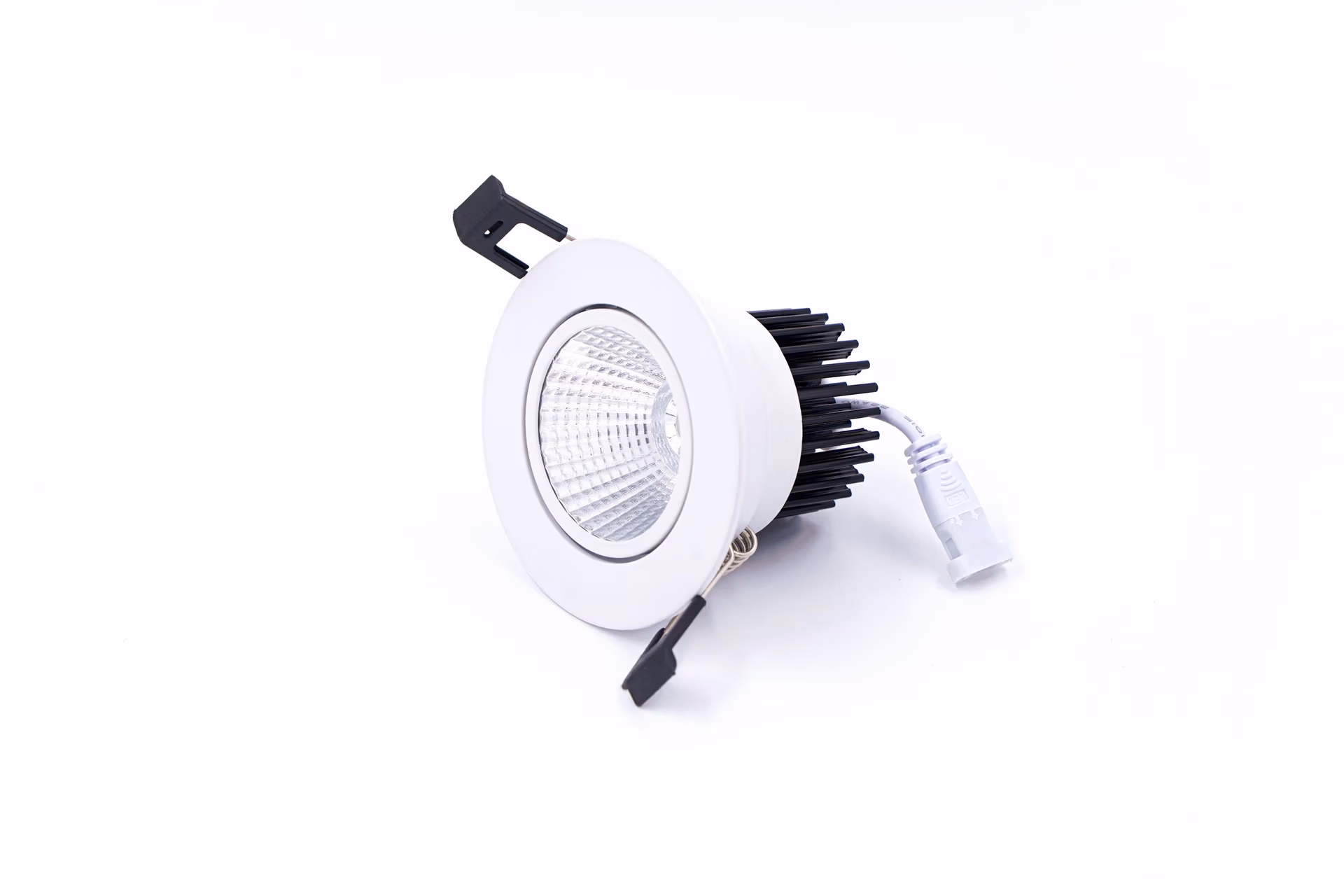

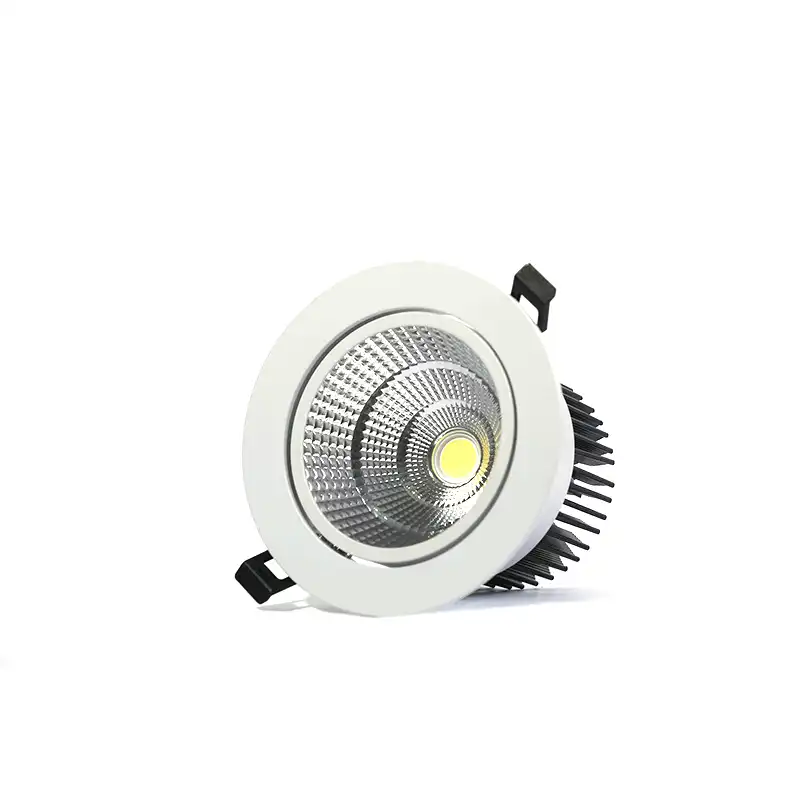

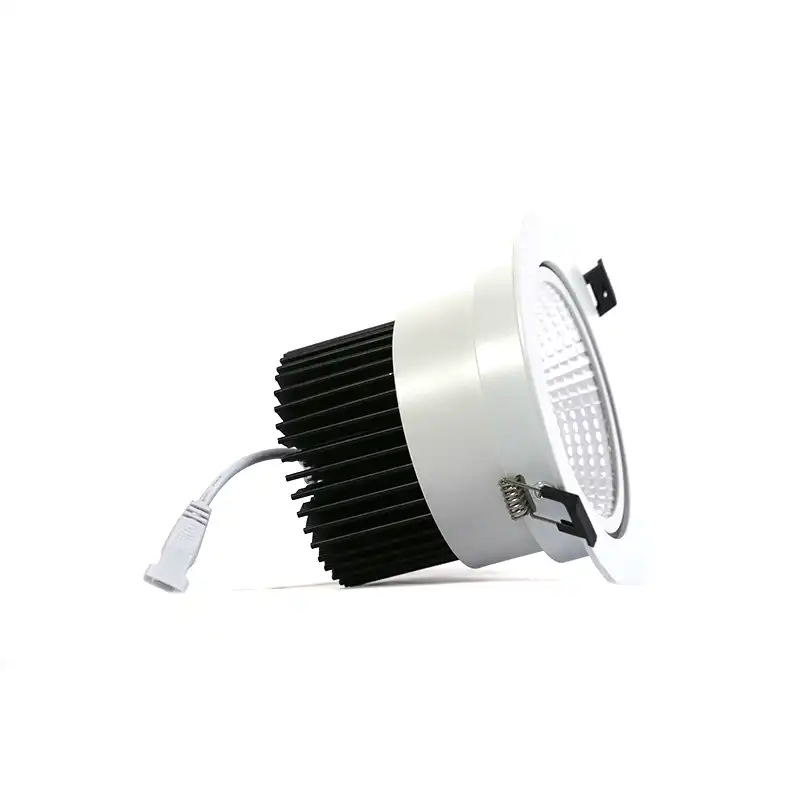

The Magnum is a classic old-school COB downlight fixture designed for reliable performance and timeless appeal. Built with precision, it delivers powerful illumination while maintaining efficiency and durability. Available in two body colours – White and Black, the Magnum blends seamlessly into any interior, whether modern or traditional. Its robust construction, excellent heat dissipation, and high-performance COB LED ensure long-lasting brightness with minimal maintenance. Perfect for residential, commercial, and hospitality applications, the Magnum is the ideal choice for those who appreciate both heritage design and dependable lighting performance.

Dimensions & Specifications

TECHNICAL PARAMETERS

MAGNUM COB

Model	MAGNUM COB
Power Wattage	3W \| 6W \| 9W \| 12W \| 15W \| 18W \| 24W \| 30W \| 40W \| 50W
Cutout (mm)	Ø55 \| Ø70 \| Ø90 \| Ø110 \| Ø110 \| Ø135
Outer (mm)	Ø68 \| Ø162 \| Ø110 \| Ø138 \| Ø158
Height (mm)	50 \| 65 \| 85 \| 100 \| 132
LED Color Temperature	3000K 4000K 6000K
Beam Angle	24° \| 36°
Optical Cover	Transparent with Reflector
Light Source	LEDTEEN \| CREE \| CITIZEN
Housing Material	Aluminum Pressure Die-Cast
Body Finishing	White
Reflector Finishing	NA
Power Requirement	AC 120 ~ 300V, 50 ~ 60Hz
Protection Rating	IP 20 \| IP 54
Lumen/W	100 lm/W
CRI	≥ 80 Ra \| ≥ 90 Ra
Operating Temperature	0 °C ~ +50 °C
Driver	External Driver
Power Factor & THD	> 0.9 \| < 20 %
