Illustra Twin
Ready for delivery in 4–5 weeks

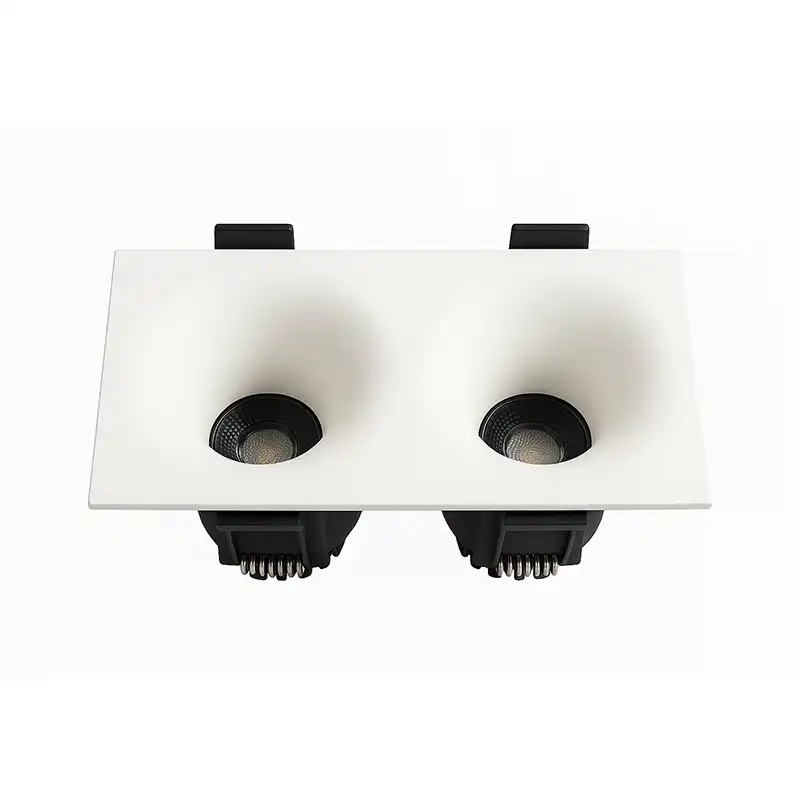

The Illustra Twin is a premium dual COB downlight designed for modern interiors that demand both style and performance.
Its anti-glare design ensures soft, eye-friendly lighting that enhances ambiance without harsh reflections, making it ideal for homes, offices, and architectural spaces.

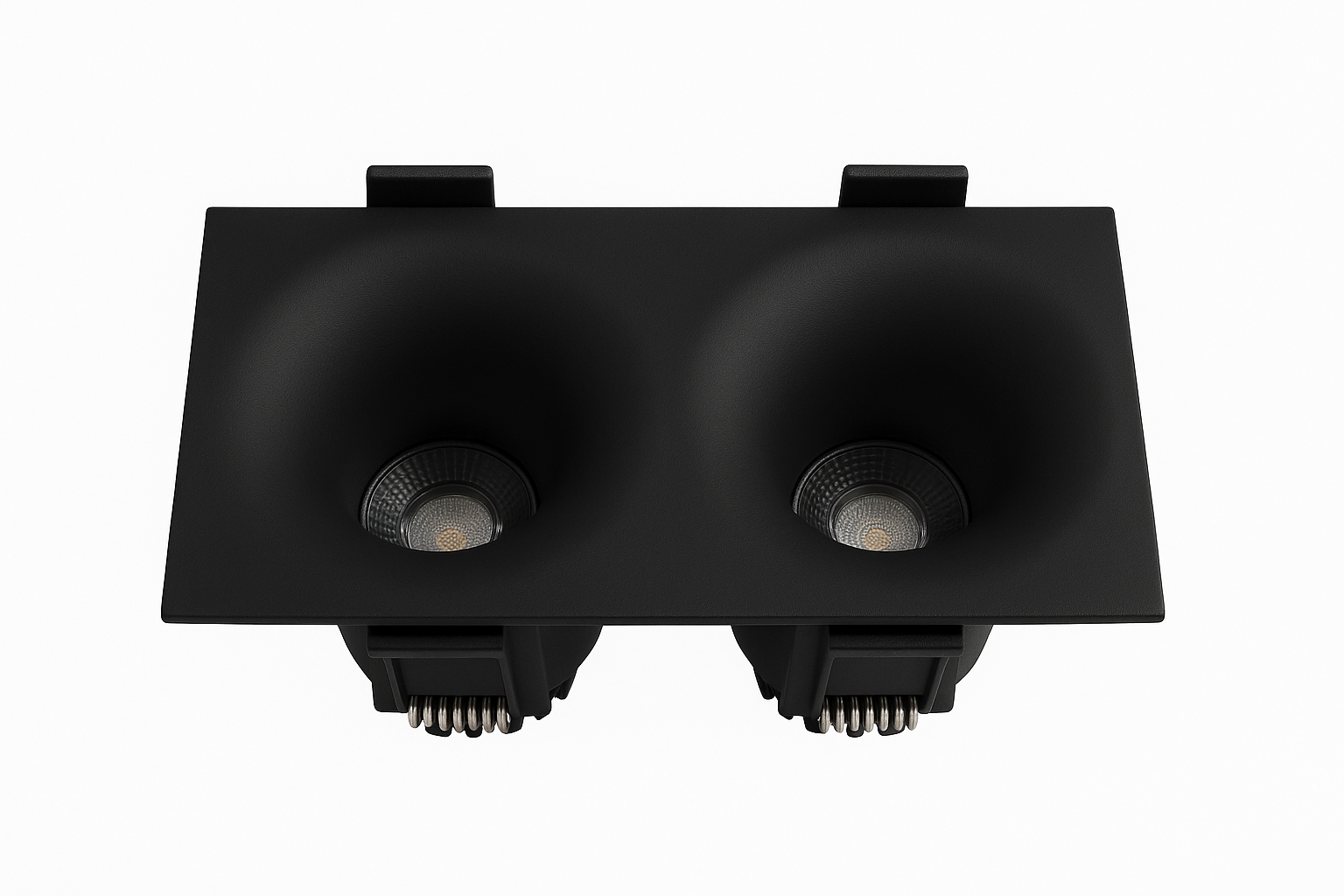

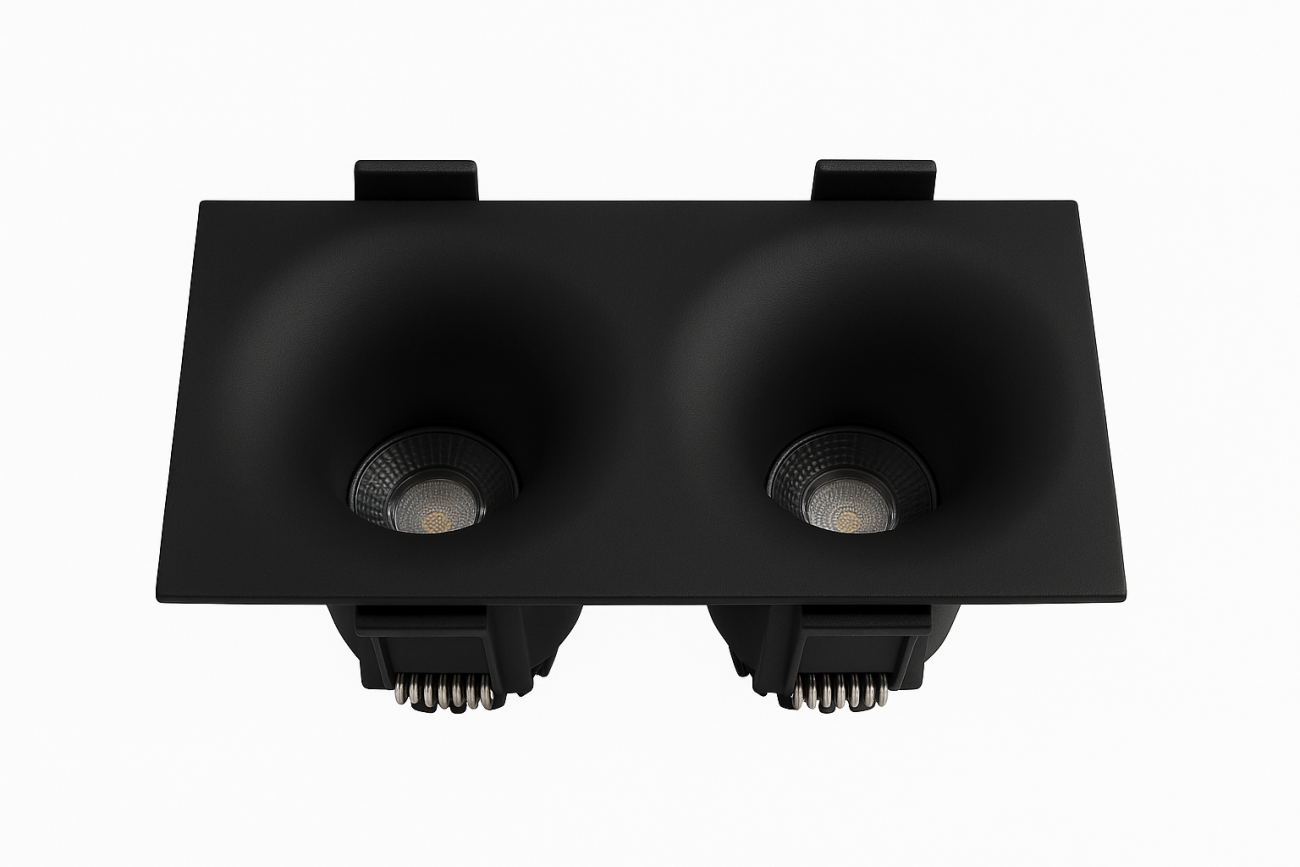

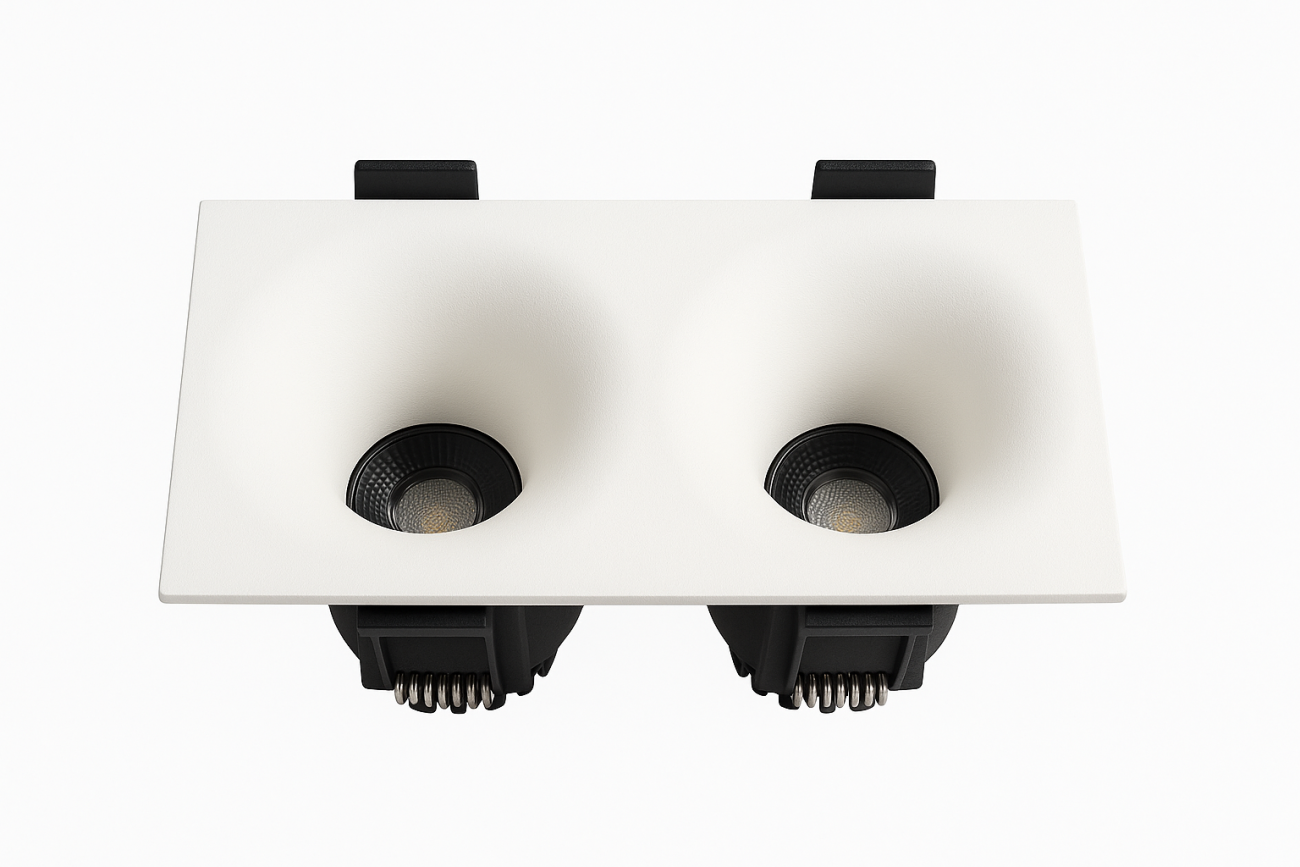

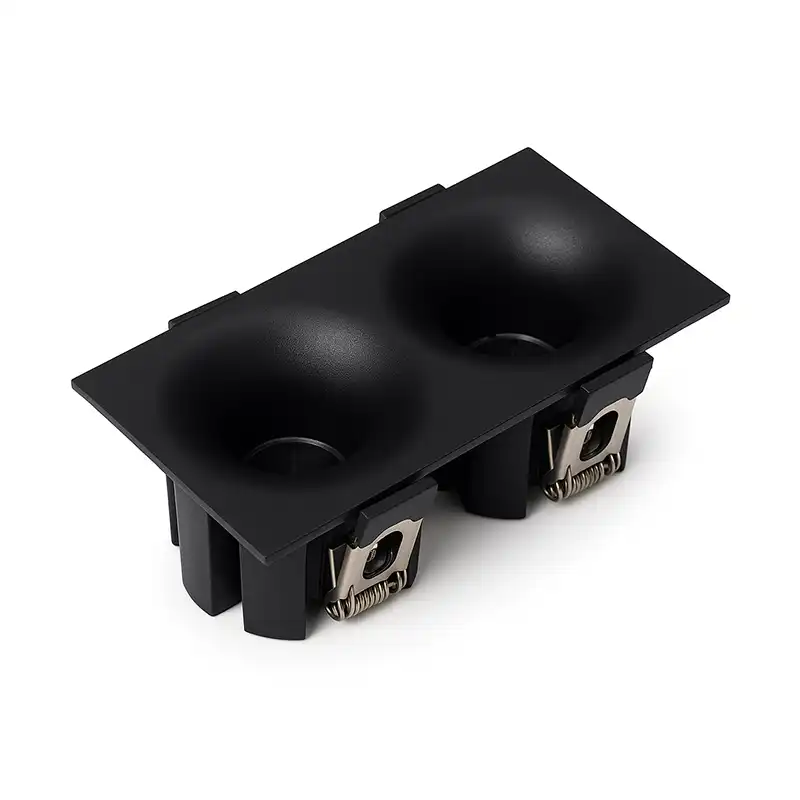

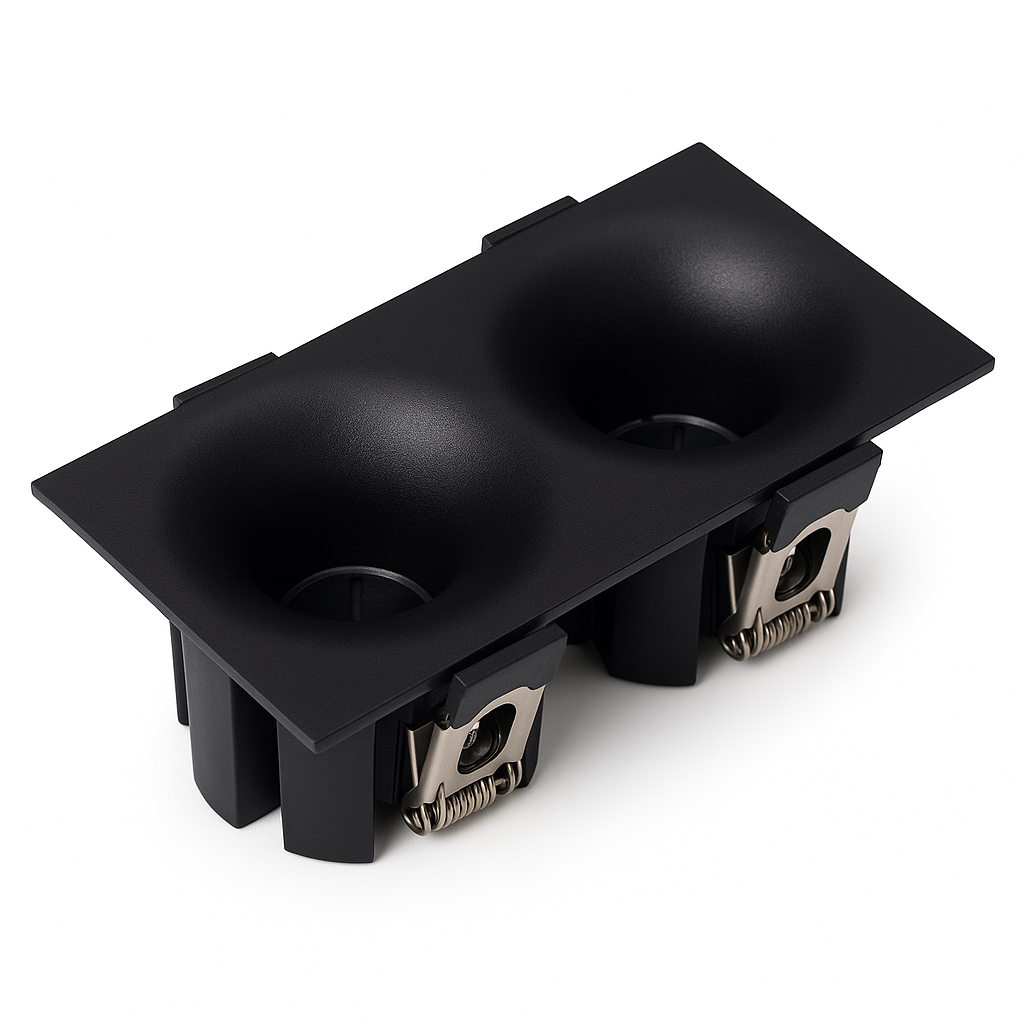

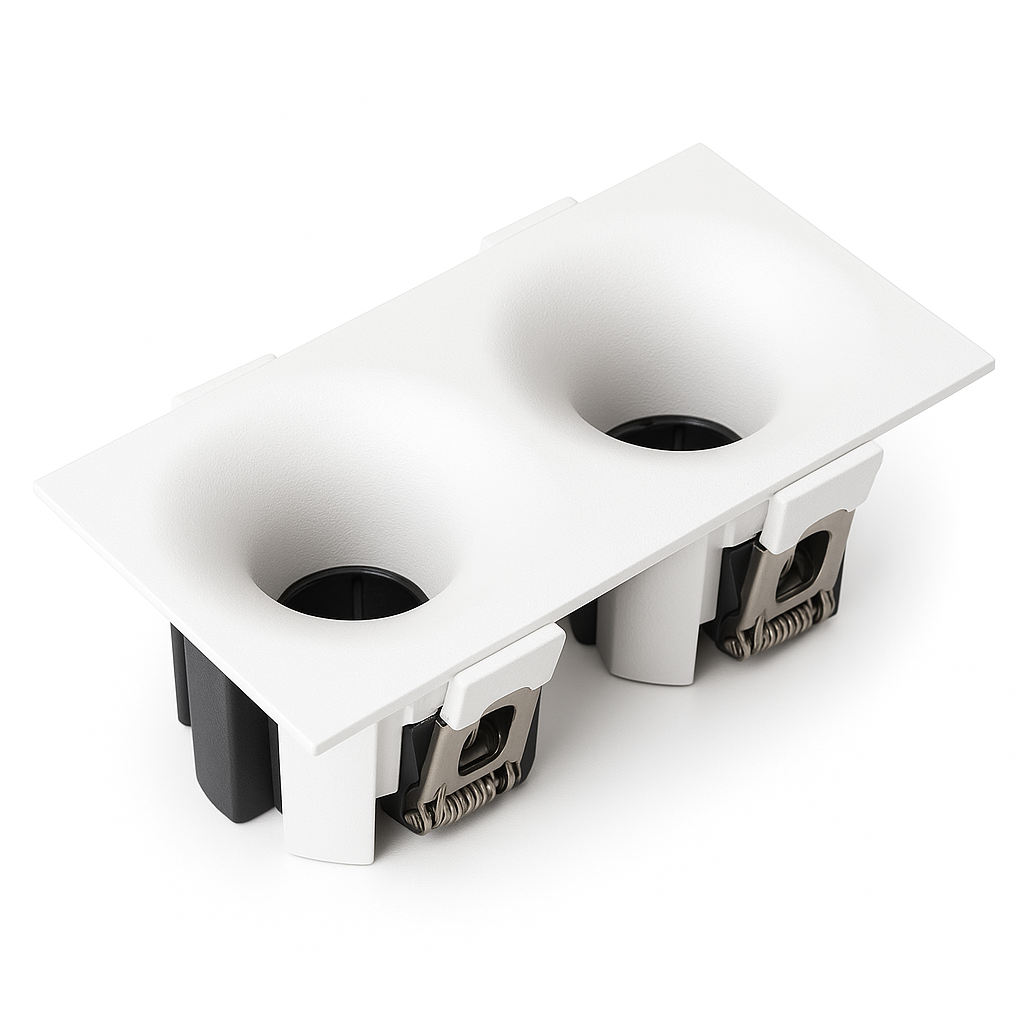

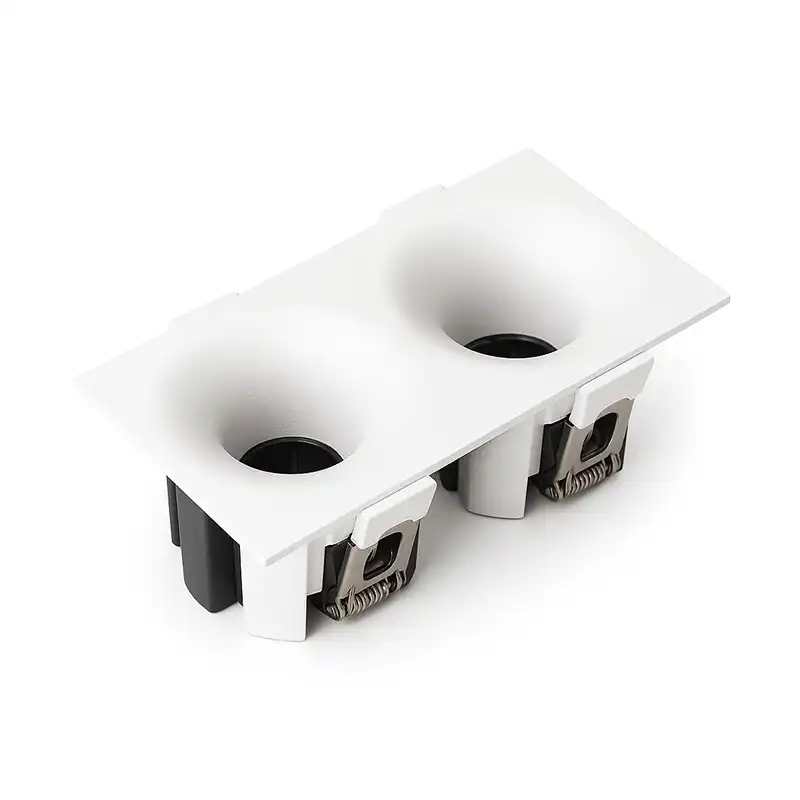

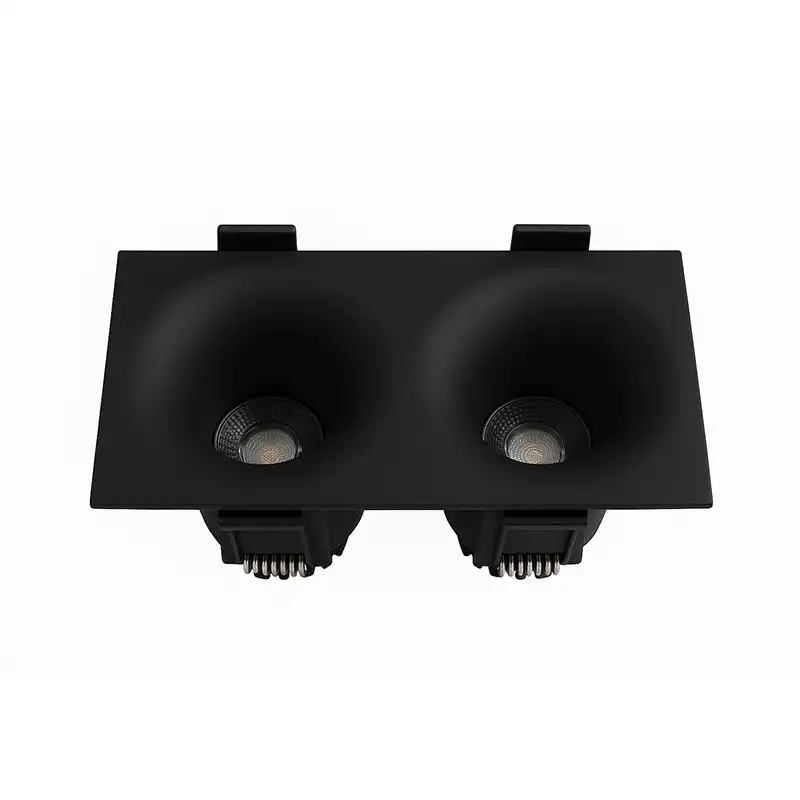

Available in two elegant finishes – White and Black – the Illustra Twin blends seamlessly into any ceiling, offering a clean, minimalist look with a premium edge. Built for durability, efficiency, and timeless design, it’s the perfect solution for stylish, glare-free lighting.
TECHNICAL PARAMETERS
Illustra Twin COB
| Model | Illustra Twin COB |
| Power Wattage | 7W × 2 |
| Cutout (mm) | 115 × 55 |
| Outer (mm) | 125 × 65 |
| Height (mm) | 50 |
| LED Color | 3000K 4000K 5000K 6000K |
| Beam Angle | 36° |
| Optical Cover | Optical Lens |
| Light Source | CREE |
| Housing Material | Aluminum Pressure Die-Cast |
| Body Finishing | White | Black |
| Reflector Finishing | NA |
| Power Requirement | 150–240 Vac 50 Hz |
| Protection Rating | IP 20 |
| Lumen/W | 130–140 lm/W |
| CRI | ≥ 80Ra | ≥ 90Ra |
| Operating Temperature | 10°c ~ +50°c |
| Driver | External Driver |
| Power Factor | >0.90 |
36°
130–140 lm/W
IP20
